Vehicle Exploded View - PIAGGIO TYPHOON 50 XR 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

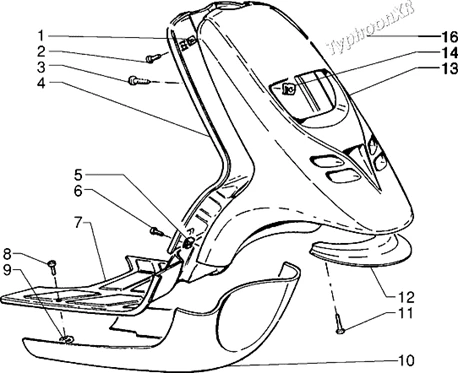

Châssis : T19 TABLIER-AV.-MARCHEPIED-SPOILER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/419/Typhoon_50_XR_1998-2005_T19.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
1 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
2 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/9/0/img/96290.jpg)
3 |
CM179306 - VIS More informationQuantity required : 2 |
|||||||||
|
3 |
CM179306 - VIS More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/9/8/3/img/84983.jpg)
4 |
COUNTER SHIELD "PIAGGIO GENUINE PART" "PIAGGIO 50 TYPHOON OLD MODEL 1995>2010 -624219000C- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
5 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
6 |
SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349 More informationQuantity required : 1 |
|||||||||
7 |
FOOTREST "PIAGGIO GENUINE PART" 50 TYPHOON, NRG 1998>2004 -298523000C- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
8 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830 More informationQuantity required : 4 |
|||||||||
|
9 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 4 |
|||||||||
|
10 |
SPOILER BLACK "PIAGGIO GENUINE PART" 50 TYPHOON 1998>2005 -575900- More informationQuantity required : 1 |
|||||||||
|
10 |
SPOILER TYPH O'NEIL 50/125/280 GRIS 693 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/4/img/66034.jpg)
11 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259348 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/0/9/8/img/77098.jpg)
12 |
FRONT WHEEL COVER "PIAGGIO GENUINE PART" 50 TYPHOON 1998>2009 -259951 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/6/8/3/img/127683.jpg)
13 |
FRONT SHIELD - "PIAGGIO GENUINE PART" 50 TYPHOON 1998>2009 RAW TO BE PAINT -6242206- More informationQuantity required : 1 |
|||||||||
|
13 |
FACE AV JAUNE 957 TYPHOON |
|||||||||
|
13 |
FRONT SHIELD - "PIAGGIO GENUINE PART" 50 TYPHOON 1998>2009 BLUE 251 -62422000D1- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/9/9/8/img/84998.jpg)
13 |
FRONT SHIELD - "PIAGGIO GENUINE PART" 50 TYPHOON 1998>2009 RED 894 -62422000R7 More informationQuantity required : 1 |
|||||||||
|
13 |
FACE AV BLANC 724 |
|||||||||
|
13 |
FRONT SHIELD - "PIAGGIO GENUINE PART" 50 TYPHOON 1998>2009 BLACK 94 -6242200090- More informationQuantity required : 1 |
|||||||||
|
14 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/4/2/8/img/80428.jpg)
15 |
DECAL - TO CLIP "PIAGGIO GENUINE PART" 50-125 ZIP, FLY, LIBERTY, 125-250 X8 -574771 More informationQuantity required : 1 |
|||||||||
|
15 |
5763190087 - ENJOLIVEUR More informationQuantity required : 1 |
|||||||||
|
15 |
576319009B - ENJOLIVEUR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/7/6/0/img/80760.jpg)
16 |
576131 - PLAQUETTE More informationQuantity required : 1 |
|||||||||
