Vehicle Exploded View - PIAGGIO TYPHOON 50 X 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

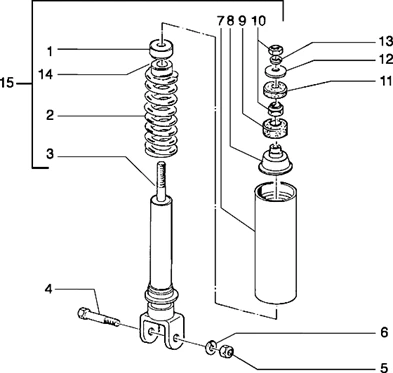

Suspensions-roues : T29 AMORTISSEUR AR.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/424/Typhoon_50_X_1998-2005_T29.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/1/1/1/img/74111.jpg)
1 |
057894 - TAMPON More informationQuantity required : 1 |
||||||
2 |
560281 - RESSORT AR More informationQuantity required : 1 |
||||||
|
3 |
66800700E4 - AMORTISSEUR ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/9/img/66069.jpg)
4 |
SCREW - FOR REAR SHOCK ABSORBER"PIAGGIO GENUINE PARTS" FOR ALL THE RANGE -268158 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
5 |
NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/3/img/65423.jpg)
6 |
016626 - RONDELLE More informationQuantity required : 1 |
||||||
|
7 |
268705 - PROTECTION More informationQuantity required : 1 |
||||||
|
8 |
2687064 - PLATEAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/1/img/65781.jpg)
9 |
178149 - TAMPON INF More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/5/9/8/img/65598.jpg)
10 |
NUT - M8 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -021108 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/2/img/65782.jpg)
11 |
UPPER BUFFER FOR REAR SHOCK ABSORBER "PIAGGIO GENUINE PARTS" COMMON FOR SCOOTERS 50/125/250CC; -178150 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/7/img/66057.jpg)
12 |
REAR SHOCK ABSORBER WASHER "PIAGGIO GENUINE PART" 50 FLY, NRG, TYPHOON, ZIP, LIBERTY/ VESPA GT, GTS, PRIMAVERA ,LX ,S ,SPRINT -267038 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
13 |
016406 - RONDELLE S01640600 More informationQuantity required : 1 |
||||||
|
14 |
ENTRETOISE |
||||||
|
15 |
66800700E4 - AMORTISSEUR ARRIERE More informationQuantity required : 1 |
