Vehicle Exploded View - PIAGGIO TYPHOON 50 X 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

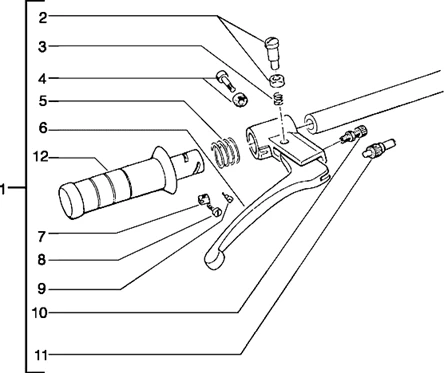

Guidon : T31 PIECES COMPOSANT LE GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/424/Typhoon_50_X_1998-2005_T31.PNG)
1 |
MIRROR- RIGHT "PIAGGIO GENUINE PART" 50 TYPHOPN, NRG 1998>2004 -271018- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/3/0/9/img/77309.jpg)
1 |
MIRROR- LEFT "PIAGGIO GENUINE PART" 50 TYPHOPN, NRG 1998>2004 -271022 More informationQuantity required : 1 |
||||||
|
1 |
564703 - MANCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/1/8/img/65718.jpg)
2 |
123394 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/8/img/66048.jpg)
2 |
265249 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/7/img/66067.jpg)
3 |
LEFT BRAKE LEVER SPRING "PIAGGIO GENUINE PART" FOR ALL MODELS WITH DRUM BRAKE -267948 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/7/2/img/65772.jpg)
3 |
CLUTCH LEVER SPRING "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR -177072 More informationQuantity required : 1 |
||||||
|
4 |
265249 - VIS More informationQuantity required : 1 |
||||||
|
4 |
123394 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/6/5/7/img/76657.jpg)
5 |
LEFT HAND GRIP "PIAGGIO GENUINE PART" 50 FREE, ZIP, SI-MIX -229745 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/3/1/8/img/77318.jpg)
5 |
271174 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/1/1/4/img/80114.jpg)
6 |
564689 - LEVIER DU FREIN EX 267954 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/1/1/5/img/80115.jpg)
6 |
564690 - LEVIER DU FREIN EX 271999 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/9/img/67189.jpg)
7 |
STOP LIGHT SWITCH "PIAGGIO GENUINE PART" UTILISABLE SUR L'ENSEMBLE DE LA GAMME PIAGGIO/GILERA/APRILIA/VESPA -580953 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/5/8/img/65958.jpg)
7 |
229935 - DOIGT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/1/2/1/img/80121.jpg)
8 |
THROTTLE HANDLE "PIAGGIO GENUINE PART" 50 TYPHOON, NRG 1998>2004 -564700- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/1/7/img/65717.jpg)
8 |
123391 - VIS More informationQuantity required : 1 |
||||||
|
9 |
5832314 - GUIDON More informationQuantity required : 1 |
||||||
|
9 |
VIS |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/5/img/65465.jpg)
10 |
020110 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/6/0/9/img/79609.jpg)
10 |
498338 - TENDEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/0/img/65350.jpg)
11 |
012543 - RONDELLE More informationQuantity required : 1 |
||||||
|
11 |
STOP LIGHT SWITCH "PIAGGIO GENUINE PART" UTILISABLE SUR L'ENSEMBLE DE LA GAMME PIAGGIO/GILERA/APRILIA/VESPA -580953 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/3/img/65423.jpg)
12 |
016626 - RONDELLE More informationQuantity required : 1 |
||||||
|
12 |
274490 - POIGNEE D More informationQuantity required : 1 |
||||||
|
13 |
|
