Vehicle Exploded View - PIAGGIO TYPHOON 50 X 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

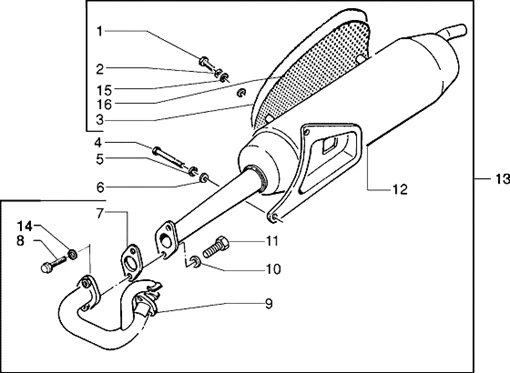

Moteur : T17/A SILENCIEUX CATALYTIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/424/Typhoon_50_X_1998-2005_T17_A.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/4/0/img/66440.jpg)
1 |
433800 - BOULON More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
2 |
016405 - RONDELLE S01640500 More informationQuantity required : 3 |
|||||||||
3 |
483670 - PROTECTION POT More informationQuantity required : 1 |
|||||||||
|
3 |
825783 - PROTECTION More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/7/5/1/img/78751.JPG)
4 |
463810 - VIS More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/5/6/7/img/78567.JPG)
5 |
431744 - RONDELLE More informationQuantity required : 2 |
|||||||||
|
6 |
431744 - RONDELLE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/0/6/6/img/77066.jpg)
7 |
GASKET- FROM PIPE TO EXHAUST MAIN BODY "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 1995>1999 -259198- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/8/3/0/img/86830.jpg)
8 |
648349 - ECROU More informationQuantity required : 2 |
|||||||||
|
8 |
648349 - ECROU More informationQuantity required : 2 |
|||||||||
|
9 |
825064 - TUYAU ECHAPP. More informationQuantity required : 1 |
|||||||||
|
9 |
825681 - TUYAU ECHAPP. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
10 |
016406 - RONDELLE S01640600 More informationQuantity required : 2 |
|||||||||
|
11 |
436502 - VIS More informationQuantity required : 2 |
|||||||||
|
12 |
SILENCIEUX |
|||||||||
|
12 |
826290 - POT D'ECHAPPEMENT COMPL. More informationQuantity required : 1 |
|||||||||
|
13 |
SILENCIEUX |
|||||||||
|
14 |
709003 - RONDELLE More informationQuantity required : 2 |
|||||||||
|
15 |
RONDELLE |
|||||||||
|
15 |
825775 - RONDELLE More informationQuantity required : 4 |
|||||||||
|
16 |
PROTECTION |
|||||||||
|
16 |
825784 - PROTECTION More informationQuantity required : 4 |
|||||||||
|
17 |
825824 - ENTRETOISE More informationQuantity required : 4 |
|||||||||
|
18 |
|
|||||||||
