Vehicle Exploded View - PIAGGIO TYPHOON 50 X 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

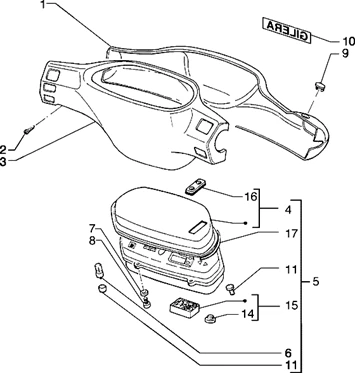

Guidon : T30 COMPTEUR KILOMETRIQUE-COUVERCLES DU GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/424/Typhoon_50_X_1998-2005_T30.PNG)
1 |
2724556 - COUVRE GUIDON NOIR More informationQuantity required : 1 |
||||||
|
1 |
4705005 - COUVRE GUIDON AV TYPHOON BRUT More informationQuantity required : 1 |
||||||
|
1 |
57517900N1 - COUVRE GUIDON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/8/img/66068.jpg)
2 |
SCREW - 20 MM "PIAGGIO GENUINE PART" COMMON TO THE RANGE -267958 More informationQuantity required : 3 |
||||||
|
3 |
PARTIE AR GUIDON 271095 |
||||||
|
3 |
563870000C - PARTIE AR GUI DF More informationQuantity required : 1 |
||||||
|
4 |
494422 - TRANSPARENT COMPTEUR More informationQuantity required : 1 |
||||||
|
5 |
582066 - COMPTEUR KILO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/0/2/8/img/82028.jpg)
5 |
SPEEDOMETER "PIAGGIO GENUINE PART" 50 TYPHOON 2000>2004 -584086 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/6/0/img/65760.jpg)
6 |
LIGHT BULB - INDICATOR LIGHT 12V-1/2W "PIAGGIO GENUINE PART" BEVERLY, X7, LIBERTY, ZIP, VESPA GTS/MOTO-GUZZI -164634 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/1/img/65361.jpg)
7 |
013769 - RONDELLE S01376900 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/0/1/img/67901.jpg)
8 |
640939 - VIS More informationQuantity required : 4 |
||||||
|
9 |
BOUCHON AV |
||||||
|
10 |
Monogramme |
||||||
|
10 |
576320009B - SIGLE PIAGGIO M99 More informationQuantity required : 1 |
||||||
|
10 |
576321009B - SIGLE PIAGGIO M99 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/7/img/66007.jpg)
11 |
BULB + SUPPORT (12V-1,2 W) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -253366 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/7/0/img/66970.jpg)
14 |
BATTERY FOR CLOCK "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S, FLY, LIBERTY, 125-250-300 VESPA GTS, 125-250 X7, 50 TYPHOON 1998>2004/GILERA 50 STALKER -498342 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/7/img/72187.jpg)
15 |
DIGITAL CLOCK "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S, FLY, LIBERTY, 125-250-300 VESPA GTS, X7/APRILIA 125-250-300 ATLANTIC, LEONARDO -AP8212406 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/6/1/3/img/79613.jpg)
16 |
498365 - BOUTON More informationQuantity required : 1 |
||||||
|
17 |
494423 - JOINT COMPTEUR More informationQuantity required : 1 |
