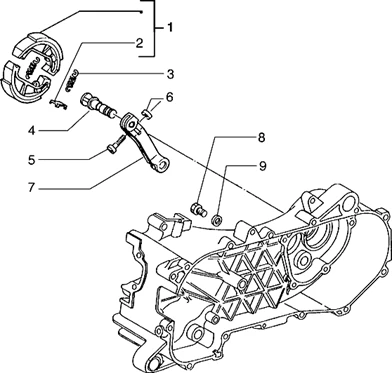

Vehicle Exploded View - PIAGGIO TYPHOON 50 X 1998-2005 PIAGGIO

Moteur : T13 LEVIER DU FREIN
Levier du frein
Search
REAR SHOE BRAKE "PIAGGIO GENUINE PART" 50 ZIP, NRG, TYPHOON, NTT 1998>2004 (PAIR) -2727115

1
P2R reference P2R reference 66114
Maker reference Maker reference 2727115

REAR SHOE BRAKE "PIAGGIO GENUINE PART" 50 ZIP, NRG, TYPHOON, NTT 1998>2004 (PAIR) -2727115

More information

Quantity required : 1

REAR SHOE BRAKE "PIAGGIO GENUINE PART" 50 ZIP 2 stroke AR, 50-125 VESPA LX AR (PAIR) -82907R

1
P2R reference P2R reference 68814
Maker reference Maker reference 82907R

REAR SHOE BRAKE "PIAGGIO GENUINE PART" 50 ZIP 2 STROKE AR, 50-125 VESPA LX AR (PAIR) -82907R

More information

Quantity required : 1

266724 - PLAQUE

2
P2R reference P2R reference 66055
Maker reference Maker reference 266724

266724 - PLAQUE

More information

Quantity required : 2

BRAKE SHOE SPRING "PIAGGIO GENUINE PART" COMMON FOR RANGE SCOOTER 50-125 -647384

3
P2R reference P2R reference 68017
Maker reference Maker reference 647384

BRAKE SHOE SPRING "PIAGGIO GENUINE PART" COMMON FOR RANGE SCOOTER 50-125 -647384

More information

Quantity required : 2

2665332 - LEVIER

4
P2R reference P2R reference 77136
Maker reference Maker reference 2665332

2665332 - LEVIER

More information

Quantity required : 1

REAR BRAKE CAM "PIAGGIO GENUINE PART" 50 ZIP, TYPHOON, NRG, LIBERTY, FLY, VESPA LX, VESPA-S/GILERA 50 STALKER, RUNNER/APRILIA 50 SR MOTARD -B014502

4
P2R reference P2R reference 72646
Maker reference Maker reference B014502

REAR BRAKE CAM "PIAGGIO GENUINE PART" 50 ZIP, TYPHOON, NRG, LIBERTY, FLY, VESPA LX, VESPA-S/GILERA 50 STALKER, RUNNER/APRILIA 50 SR MOTARD -B014502

More information

Quantity required : 1

SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774

5
P2R reference P2R reference 72720
Maker reference Maker reference B016774

SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774

More information

Quantity required : 1

SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774

5
P2R reference P2R reference 72720
Maker reference Maker reference 414837

SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774

More information

Quantity required : 1

709041 - ECROU

6
P2R reference P2R reference 68490
Maker reference Maker reference 709041

709041 - ECROU

More information

Quantity required : 1

266610 - LEVIER FREIN AR

7
P2R reference P2R reference 77140
Maker reference Maker reference 266610

266610 - LEVIER FREIN AR

More information

Quantity required : 1

REAR BRAKE LEVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -833428

7
P2R reference P2R reference 69060
Maker reference Maker reference 833428

REAR BRAKE LEVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -833428

More information

Quantity required : 1

OIL DRAIN CAP for TRANSMISSION REDUCTION SYSTEM "PIAGGIO GENUINE PART" 125 VESPA PX, COMMON FOR ALL 50cc SCOOTERS 1998>2004 -138345

8
P2R reference P2R reference 65737
Maker reference Maker reference 138345

OIL DRAIN CAP FOR TRANSMISSION REDUCTION SYSTEM "PIAGGIO GENUINE PART" 125 VESPA PX, COMMON FOR ALL 50CC SCOOTERS 1998>2004 -138345

More information

Quantity required : 2

DRAIN SCREW GASKET (8,2x12x1) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -485703

9
P2R reference P2R reference 66689
Maker reference Maker reference 485703

DRAIN SCREW GASKET (8,2X12X1) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -485703

More information

Quantity required : 2
