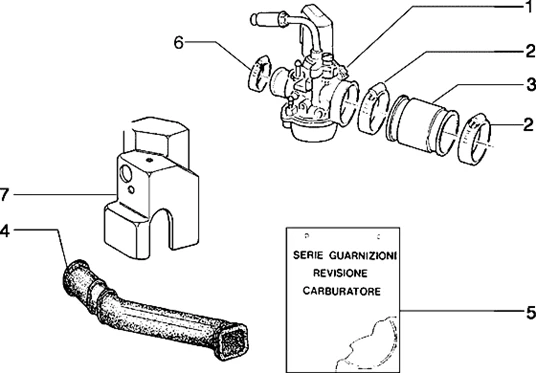

Vehicle Exploded View - PIAGGIO TYPHOON 50 X 1998-2005

	P2R reference	65699
	Maker reference	113903

ANGLED GUIDING TUE FOR CARB "PIAGGIO GENUINE PART"COMMON FOR ALL SCOOTER 50 CC -113903

	P2R reference	79027
	Maker reference	484920

484920 - CARBURATEUR

	P2R reference	79029
	Maker reference	484922

CARBURETTOR "PIAGGIO GENUINE PART" 50 TYPHOON, NRG, ZIP 1998>2004 -484922

	P2R reference
	Maker reference	484925

CARBURATEUR

	P2R reference
	Maker reference	487135

CARBURATEUR

	P2R reference
	Maker reference	825107

Carburateur

	P2R reference
	Maker reference	826190

Carburateur

	P2R reference	66415
	Maker reference	431654

431654 - COUVERCLE CARBURATEUR QUARTZ

	P2R reference
	Maker reference	CM109001

COUVERCLE

	P2R reference	66017
	Maker reference	257134

257134 - COLLIER

	P2R reference	66206
	Maker reference	288875

288875 - RESSORT

	P2R reference	66483
	Maker reference	436096

JOINING SLEEVE- FROM CARB TO AIRBOX "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 1998>2005 -436096

	P2R reference
	Maker reference	288883

CAPUCHON

	P2R reference
	Maker reference	435704

COIFFE

	P2R reference	78610
	Maker reference	433912

433912 - CONDUIT

	P2R reference	66572
	Maker reference	479093

CHOKE "PIAGGIO GENUINE PART" 50 TYPHOON, NRG, ZIP 1995>1999, VESPA ET2/GILERA 50 STALKER, RUNNER -479093

	P2R reference	66972
	Maker reference	498409

DELL'ORTO CARB GASKET SET "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 STROKE -498409

	P2R reference	66977
	Maker reference	498475

GASKET SET FOR CARB "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 STROKE 1998>2005 -498475

	P2R reference	66228
	Maker reference	289575

289575 - VIS

	P2R reference
	Maker reference	435686

VIS

	P2R reference	68569
	Maker reference	825865

825865 - CIRCLIPS

	P2R reference	66201
	Maker reference	288863

CHOKE PLATE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 STROKE -288863

	P2R reference
	Maker reference	435685

PLAQUETTE

	P2R reference	68994
	Maker reference	832186

832186 - COIFFE

	P2R reference	76904
	Maker reference	247654

247654 - POINTEAU

	P2R reference	66479
	Maker reference	435708

435708 - POINTEAU

	P2R reference	73146
	Maker reference	CM128501

CARB FLOAT NEEDLE VALVE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -CM128501

	P2R reference
	Maker reference	435703

FLOTTEUR

	P2R reference	66625
	Maker reference	482916

CARB FLOAT BOWL - "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -482916

	P2R reference	66664
	Maker reference	484704

CARB FLOAT CHAMBER "PIAGGIO GENUINE PART" 50 ZIP, NRG, LIBERTY, FLY, VESPA LX/GILERA 50 RUNNER, STALKER/APRILIA 50 RS, SR -484704

	P2R reference
	Maker reference	827037

CUVE CARBURATEUR WEBER

	P2R reference	66200
	Maker reference	288862

288862 - VIS

	P2R reference
	Maker reference	435684

VIS

	P2R reference	66423
	Maker reference	432456

SCREW - FOR CARB BOWL "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 -432456

	P2R reference	66209
	Maker reference	288881

288881 - AXE FLOTTEUR

	P2R reference
	Maker reference	435702

PIVOT

	P2R reference
	Maker reference	CM102009

GICLEUR 34 EX 435714

	P2R reference	73069
	Maker reference	CM102105

CM102105 - GICLEUR STARTER

	P2R reference	73070
	Maker reference	CM102107

CM102107 - GICLEUR STARTER

	P2R reference	73071
	Maker reference	CM102109

CM102109 - GICLEUR STARTER

	P2R reference
	Maker reference	CM102111

Gicleur starter

	P2R reference	73048
	Maker reference	CM101711

CM101711 - GICLEUR 60

	P2R reference	73050
	Maker reference	CM101717

CM101717 - GICL.MAXI

	P2R reference	73051
	Maker reference	CM101719

CM101719 - GICL.MAXI

	P2R reference	73052
	Maker reference	CM101721

CM101721 - GICLEUR

	P2R reference	95902
	Maker reference	CM101823

CM101823 - GICLEUR MAXI

	P2R reference
	Maker reference	CM101829

GICLEUR WEBER 72

	P2R reference	73180
	Maker reference	CM141702

CM141702 - CLAPET GAZ

	P2R reference
	Maker reference	CM108901

BOISSEAU

	P2R reference	65670
	Maker reference	0852855

085285 - RESSORT

	P2R reference
	Maker reference	435697

RESSORT

	P2R reference	65751
	Maker reference	152608

152608 - VIS

	P2R reference
	Maker reference	435699

RESSORT

	P2R reference	66208
	Maker reference	288880

CARB ADJUSTING SCREW "PIAGGIO GENUINE PARTS" 50 TYPHOON, LIBERTY, ZIP, NRG 1998>2004/GILERA 50 STALKER, RUNNER, DNA -288880

	P2R reference
	Maker reference	825155

VIS REGLAGE

	P2R reference	66207
	Maker reference	288878

288878 - BOUTON

	P2R reference	73102
	Maker reference	CM107701

SCREW - CARB AIR SCREW "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -CM107701

	P2R reference	73103
	Maker reference	CM107702

CM107702 - VIS

	P2R reference
	Maker reference	CM110501

REGULATEUR

	P2R reference	95924
	Maker reference	CM107501

NEEDLE FOR CARB "PIAGGIO GENUINE PART" 50 TYPHOON, NRG, ZIP OLD MODEL -CM107501

	P2R reference	66455
	Maker reference	434469

434469 - AIGUILLE

	P2R reference
	Maker reference	434934

Pointeau conique

	P2R reference	73100
	Maker reference	CM107510

NEEDLE FOR CARB "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER 50CC 2STROKE -CM107510

	P2R reference
	Maker reference	CM107805

POINTEAU SUP

	P2R reference	95930
	Maker reference	CM107812

CM107812 - POINTEAU C15

	P2R reference	66204
	Maker reference	288872

NEEDLE CIRCLIP FOR CARB "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER 50 CC -288872

	P2R reference
	Maker reference	435692

CLIPS

	P2R reference	66205
	Maker reference	288873

CONICAL PIN CLIP "PIAGGIO GENUINE PART" COMMON TO THE SCOOTER 50 CC RANGE -288873

	P2R reference
	Maker reference	CM108401

ARRET POINTEAU

	P2R reference	66202
	Maker reference	288865

288865 - VIS

	P2R reference
	Maker reference	435688

VIS

	P2R reference	66414
	Maker reference	431635

431635 - GICLEUR STARTER

	P2R reference
	Maker reference	CM102702

GICLEUR DEMARRAGE WEBER 50/2
