Vehicle Exploded View - PIAGGIO TYPHOON 50 X 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

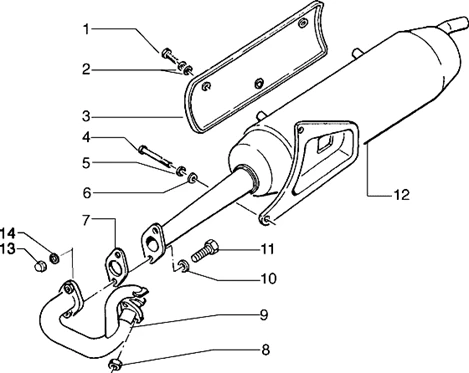

Moteur : T17 SILENCIEUX CATALYTIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/424/Typhoon_50_X_1998-2005_T17.PNG)
1 |
259213 - BOULON More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/6/img/65396.jpg)
1 |
SCREW - 8X30 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015792 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
2 |
003058 - RONDELLE S00305800 More informationQuantity required : 1 |
|||||||||
|
3 |
483671 - PROTEC POT ECAP More informationQuantity required : 1 |
|||||||||
|
3 |
PROTECTION POT |
|||||||||
|
4 |
431740 - BOULON More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/5/6/7/img/78567.JPG)
5 |
431744 - RONDELLE More informationQuantity required : 2 |
|||||||||
|
6 |
431744 - RONDELLE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/0/6/6/img/77066.jpg)
7 |
GASKET- FROM PIPE TO EXHAUST MAIN BODY "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 1995>1999 -259198- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
8 |
NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245 More informationQuantity required : 2 |
|||||||||
|
8 |
020006 - ECROU More informationQuantity required : 2 |
|||||||||
|
9 |
433846 - TUBE ECHPT More informationQuantity required : 1 |
|||||||||
|
9 |
436741 - RACCORD ECHPT More informationQuantity required : 1 |
|||||||||
|
9 |
COURBE ECHAPPEM. C19 TYPE RSC01 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/6/8/3/img/78683.jpg)
9 |
EXHAUST PIPE "PIAGGIO GENUINE PART" 50 TYPHOON 1998>2005, NRG MC2, SFERA -436503- More informationQuantity required : 1 |
|||||||||
|
9 |
TUBE |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
10 |
016406 - RONDELLE S01640600 More informationQuantity required : 2 |
|||||||||
|
11 |
436502 - VIS More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/9/img/65639.jpg)
11 |
031088 - VIS S03108800 More informationQuantity required : 2 |
|||||||||
|
12 |
433973 - SILENCIEUX More informationQuantity required : 1 |
|||||||||
|
12 |
435490 - SILENCIEUX ECHPT More informationQuantity required : 1 |
|||||||||
|
12 |
436838 - SILENCIEUX More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/8/3/0/img/86830.jpg)
13 |
648349 - ECROU More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/4/img/65364.jpg)
13 |
MULTIPURPOSE WASHER (8,2X20X2,2)"PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -013861 More informationQuantity required : 1 |
|||||||||
|
13 |
648349 - ECROU More informationQuantity required : 2 |
|||||||||
|
14 |
709003 - RONDELLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
14 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/5/5/img/69355.jpg)
15 |
SCREW - FOR EXHAUST 75X8 "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -845591 More informationQuantity required : 1 |
|||||||||
|
15 |
435028 - VIS More informationQuantity required : 1 |
|||||||||
|
16 |
256756 - BOULON More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/4/img/65414.jpg)
17 |
WASHER (4,2X7,6X0,9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -016404 More informationQuantity required : 4 |
|||||||||
|
19 |
432002 - PROTECTION More informationQuantity required : 1 |
|||||||||
