Vehicle Exploded View - PIAGGIO TYPHOON 50 X 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

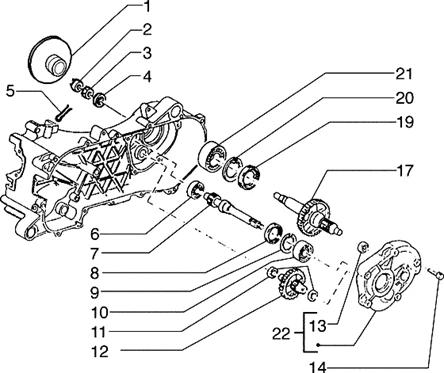

Moteur : T9 ARBRE ROUE AR.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/424/Typhoon_50_X_1998-2005_T9.PNG)
1 |
563755 - PROTECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/9/6/5/0/img/189650.jpg)
2 |
1C004746 - CHAPEAU D'ARRET D'ECROU More informationQuantity required : 1 |
||||||
|
2 |
1C004746 - CHAPEAU D'ARRET D'ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/3/5/img/67035.jpg)
3 |
NUT - (16X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -563728 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/7/img/65757.jpg)
4 |
REAR WHEEL WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -159347 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/5/img/65355.jpg)
5 |
REAR WHEEL SAFETY PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -012789 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/5/2/img/66552.jpg)
6 |
478261 - ROULEMENT More informationQuantity required : 1 |
||||||
|
7 |
FAN PULLEY SHAFT "PIAGGIO GENUINE PART" 50 NRG, TYPHOON, ZIP OLD MODEL 1993>1999 -2898325 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/8/3/img/66583.jpg)
7 |
FAN PULLEY SHAFT "PIAGGIO GENUINE PART" 50 ZIP 2000>, NRG 2000>, VESPA LX 2000>, PRIMAVERA 2013>, VESPA-S 2007>/GILERA 50 RUNNER, STALKER 2000>/APRILIA 50 SR H2O 2004>, MOJITO 2004> -4795934 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/8/1/0/img/76810.jpg)
8 |
239848 - BAGUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/9/0/img/66590.jpg)
8 |
GASKET RING- CLUTCH PULLEY AXLE "PIAGGIO GENUINE PART" 50 FLY, LIBERTY, NRG, TYPHOON, ZIP/ GILERA 50 STALKER, RUNNER/APRILIA 50 SR,SPORT CITY ONE/VESPA LX, SPRINT, PRMIAVERA -480066 More informationQuantity required : 1 |
||||||
|
9 |
CIRCLIPS |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/0/4/img/66604.jpg)
9 |
480953 - CIRCLIPS More informationQuantity required : 1 |
||||||
|
10 |
DRIVE SHAFT BEARING "PIAGGIO GENUINE PART" 50 ZIP, TYPHOON, NRG, FREE 1998>2003 -430751- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/9/6/img/66196.jpg)
11 |
WASHER FOR SECONDARY TRANSMISSION SHAFT "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288639 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/5/2/8/img/78528.jpg)
12 |
REAR TRANSMISSION SHAFT Z=13/39 "PIAGGIO GENUINE PART" 50 TYPHOON, NRG, NTT 1998>2004 -4300095 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/9/3/img/66593.jpg)
12 |
4802185 - AXE EX 487075 ET 480218 More informationQuantity required : 1 |
||||||
|
13 |
1304912 - DOUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/7/3/img/66473.jpg)
13 |
DRIVE SHAFT BEARING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER 50 CC -435363 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/1/6/img/151716.jpg)
14 |
1A011120 - VIS More informationQuantity required : 5 |
||||||
|
14 |
1A011120 - VIS More informationQuantity required : 5 |
||||||
|
17 |
axe roue |
||||||
|
17 |
AXE ROUE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/4/1/img/66741.jpg)
17 |
REAR WHEEL AXLE "PIAGGIO GENUINE PART" 50 ZIP, VESPA-S, VESPA LX, NRG/GILERA 50 RUNNER -4874855 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/5/8/img/66558.jpg)
19 |
GASKET RING- WHEEL AXLE (47X30X6) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 -478498 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/5/img/63825.jpg)
20 |
CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006647 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/5/9/img/66459.jpg)
21 |
DRIVE SHAFT BEARING (20X47X14) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -434735 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/6/5/6/img/78656.jpg)
22 |
TRANSMISSION REDUCER COVER "PIAGGIO GENUINE PART" 50 TYPHOON, ZIP , SFERA, NRG, FREE, NTT 1998>2004 -4354216 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/3/9/img/66739.jpg)
22 |
TRANSMISSION REDUCER COVER "PIAGGIO GENUINE PART" 50 ZIP, NRG, TYPHOON, VESPA LX, PRIMAVERA, SPRINT/GILERA 50 STALKER, RUNNER/APRILIA 50 SR -4874805 More informationQuantity required : 1 |
