Vehicle Exploded View - MOTO-GUZZI STELVIO 1200 1200 2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

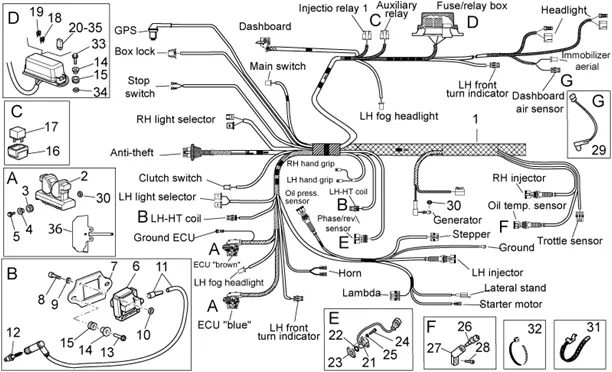

Chassis : 33.40 CIRCUIT ELECTRIQUE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/520/Stelvio_1200_1200_2008_33.40.PNG)
1 |
HARNESS ELECTRIC PRINCIPALE OEM PIAGGIO MOTO-GUZZI 1200 STELVIO-978448 More informationQuantity required : 1 |
||||||
|
2 |
978447 - CENTRALINA ELETT STELVIO More informationQuantity required : 1 |
||||||
|
3 |
978152-SILENBLOC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/5/img/71485.jpg)
4 |
BUSH EN T INNER 5 MM OEM PIAGGIO COMMON A LA RANGE-AP8121795 More informationQuantity required : 2 |
||||||
|
5 |
GU98680345-SCREW TCEI M6X45 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/9/3/3/img/130933.jpg)
6 |
BOBINE IGNITION OEM PIAGGIO MOTO-GUZZI 1100 CALIFORNIA 1994 > 2004, 1200 GRISO 2007 > 2017, 750 V7 2008 > 2012, 1200 NORGE 2010 >, 1200 SPORT 2008 > 2013, 1100 V11 1999 > 2005-GU30716500 More informationQuantity required : 2 |
||||||
|
7 |
GU05716730-BRACKET BOBINE More informationQuantity required : 2 |
||||||
|
8 |
GU98682125-SCREW M4X25 More informationQuantity required : 8 |
||||||
|
9 |
GU95008204-WASHER 4, 3X8X0, 5 More informationQuantity required : 8 |
||||||
|
10 |
GU92630104-NUT M4X0, 7 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/3/0/7/img/98307.jpg)
11 |
CABLE IGNITION HAUTE TENTION WITH ANTIPARASITE OEM PIAGGIO MOTO-GUZZI 1200 STELVIO 2008 >-642233 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/4/6/5/3/img/124653.jpg)
12 |
SPARK PLUG PMR8B OEM PIAGGIO 1200 MOTO-GUZZI BREVA, GRISO, NORGE, STELVIO, 1100 CALIFORNIA, BELLAGIO-GU05717030 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
13 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
14 |
RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
15 |
BUSH EN T (DIAMETER INNER MM 6) OEM PIAGGIO COMMON A LA RANGE-AP8221023 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/9/img/72289.jpg)
16 |
RUBBER BRACKET RELAIS OEM PIAGGIO COMMON A LA RANGE-AP8220546 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/2/7/img/70827.jpg)
17 |
RELAIS INJECTION OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-895481 More informationQuantity required : 2 |
||||||
|
18 |
977769 - FUSIBILE LAM MINI 3A More informationQuantity required : 3 |
||||||
|
19 |
977772-FUSIBLE 15A More informationQuantity required : 5 |
||||||
|
20 |
GU01731760 - RELE' DEV. SIEMENS A1001A403 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/9/4/7/img/101947.jpg)
21 |
SENSOR OF PHASE/REGIME OEM PIAGGIO MOTO-GUZZI 750-1100-1200 BREVA, NORGE, GRISO, 1200 STELVIO, SPORT, 1100 CALIFORNIA, V11, 750 V7, 940 BELLAGIO-GU01721600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/9/img/69479.jpg)
22 |
O-RING CIRCUIT ALIMENTATION OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-847180 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/9/4/8/img/101948.jpg)
23 |
GASKET SENSOR PHASE/TOURS (0. 3MM) OEM MOTO GUZZI BELLAGIO, GRISO, NORGE-GU01722700 More informationQuantity required : 1 |
||||||
|
23 |
GU01722701-GUARNIZIONE 0, 4MM More informationQuantity required : 1 |
||||||
|
23 |
GU01722702-GUARNIZIONE 0, 6MM More informationQuantity required : 1 |
||||||
|
23 |
GASKET SENSOR PHASE/TOURS (0. 8MM) OEM MOTO GUZZI BELLAGIO, GRISO, NORGE-GU01722703 More informationQuantity required : 1 |
||||||
|
23 |
GASKET SENSOR PHASE/TOURS (1MM) OEM MOTO GUZZI BELLAGIO, GRISO, NORGE-GU01722704 More informationQuantity required : 1 |
||||||
|
23 |
GU01722705-GUARNIZIONE 1, 5MM More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/4/3/9/img/130439.jpg)
23 |
GASKET SENSOR PHASE/TOURS (0. 5MM) OEM MOTO GUZZI BELLAGIO, GRISO, NORGE-GU29722760 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/7/5/img/73575.jpg)
24 |
SCREW BTR (5X12) OEM PIAGGIO COMMON ALA RANGE MOTO-GUZZI-GU98682212 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/8/1/img/132681.jpg)
25 |
WASHER PLATE (5. 3X10X0. 8) OEM PIAGGIO COMMON A LA RANGE-GU95008205 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/4/4/6/img/130446.jpg)
26 |
SENSOR FOR OIL TEMPERATURE "PIAGGIO GENUINE PART" COMMUN A LA GAMME MOTO-GUZZI - GU29729461 More informationQuantity required : 1 |
||||||
|
27 |
976556 - SUPPORTO SENSORE TEMPERATURA More informationQuantity required : 1 |
||||||
|
28 |
GU98683520-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/7/2/img/71572.jpg)
29 |
SENSOR/DETECTEUR DE TEMPERATURE AIR OEM PIAGGIO COMMON A LA RANGE APRILIA ET MOTO GUZZI-AP8124936 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
30 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 3 |
||||||
|
31 |
GU06609600-CLAMP More informationQuantity required : 9 |
||||||
|
32 |
GU14609650-CLAMP 3, 6X20, 6 More informationQuantity required : 23 |
||||||
|
32 |
GU49609601-CLAMP 2, 4X92 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/0/4/img/132604.jpg)
32 |
HOSE CLAMP NYLON TYPE RILSAN 3. 6X375MM OEM PIAGGIO COMMON A LA RANGE-GU93304390 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
33 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280 More informationQuantity required : 2 |
||||||
|
34 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
||||||
|
35 |
GU01732560 - RELE' INTERUTTORE SIEMENS A1001A402 More informationQuantity required : 2 |
||||||
|
36 |
883968-CUFFIA CENTRALINA More informationQuantity required : 1 |
