Vehicle Exploded View - MOTO-GUZZI STELVIO 1200 1200 2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

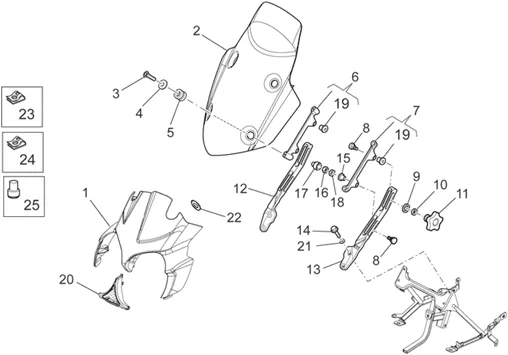

Chassis : 33.15 CARROSSERIE AV. - COUPOLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/520/Stelvio_1200_1200_2008_33.15.PNG)
1 |
978418-CUPOLINO GREZZO More informationQuantity required : 1 |
||||||
|
1 |
97841800Y11 - CUPOLINO GRIGIO More informationQuantity required : 1 |
||||||
|
2 |
978423 - PARABREZZA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/6/3/img/73563.jpg)
3 |
SCREW BTR HEAD FRAISEE (6X18) OEM PIAGGIO COMMON A LA RANGE-GU98257618 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/6/img/66086.jpg)
4 |
WASHER OF FITTING KIT WINDSCREEN OEM PIAGGIO 125 LIBERTY PTT 2012 >/MOTO-GUZZI 1200 NORGE, STELVIO-269787 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/9/3/img/66993.jpg)
5 |
RUBBER/RUBBER MOUNT (15 X32 X13) PROTECTOR PRISE OEM PIAGGIO COMMON A LA RANGE-560173 More informationQuantity required : 4 |
||||||
|
6 |
977583-BRACKET PARABREZZA DX CON BUSSOLE More informationQuantity required : 1 |
||||||
|
7 |
977584-BRACKET PARABREZZA SX CON BUSSOLE More informationQuantity required : 1 |
||||||
|
8 |
977600-SCREW SPECIALE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/2/img/73552.jpg)
9 |
GU95005310 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
10 |
WASHER (8, 4X13X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU14615901 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/0/7/3/img/71073.jpg)
11 |
GRIP OF ADJUSTMENT OF BULLE OEM PIAGGIO APRILIA 1200 CAPONORD, NORGE, STELVIO-977681 More informationQuantity required : 2 |
||||||
|
12 |
977596-STAFFA PARABREZZA DX More informationQuantity required : 1 |
||||||
|
13 |
977597-STAFFA PARABREZZA SX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
14 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 4 |
||||||
|
15 |
977698-BUSSOLA A T 8, 2X10, 2X11, 6COL 20X2, 5 More informationQuantity required : 2 |
||||||
|
16 |
GU92640708-NUT M8 More informationQuantity required : 2 |
||||||
|
17 |
978170-CAP X DADO M8 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/6/4/6/img/110646.jpg)
18 |
WASHER SPRING (8. 4X15X1. 5) OEM PIAGGIO COMMON A LA RANGE-658837 More informationQuantity required : 2 |
||||||
|
19 |
977699-BUSSOLA A T 8, 2X10, 2X4 COL 16X1 More informationQuantity required : 4 |
||||||
|
20 |
883069-CORNICE COMPLETA FANALE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/2/img/71912.jpg)
21 |
WASHER (6, 4X10X, 7) OEM PIAGGIO COMMON A LA RANGE-AP8152105 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/5/0/img/65850.jpg)
22 |
BUFFER/SILENCBLOC DE FAIRING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-1B000888 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
23 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/7/img/71177.jpg)
24 |
NUT SHEET METAL (M4) OEM PIAGGIO COMMON A LA RANGE-AP8102381 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/9/img/71419.JPG)
25 |
CAP DE VIDANGE BOX A AIR OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-AP8120876 More informationQuantity required : 1 |
