Vehicle Exploded View - MOTO-GUZZI STELVIO 1200 1200 2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

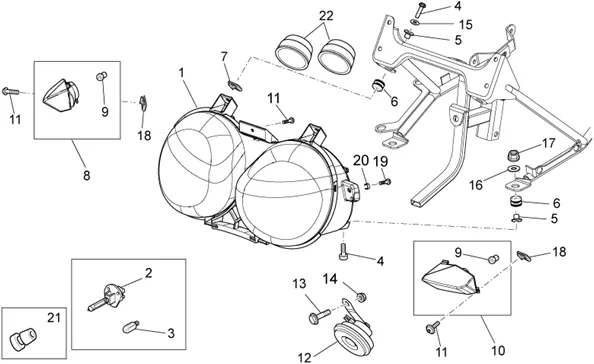

Chassis : 33.38 FEU AV/KLAXON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/520/Stelvio_1200_1200_2008_33.38.PNG)
1 |
887029-FANALE ANT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/6/img/66256.jpg)
2 |
AMPOULE/LAMPE 12V 60/55W H4 OEM PIAGGIO COMMON A LA RANGE-292723 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
3 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE OEM PIAGGIO COMMON A LA RANGE-2920225 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/5/2/img/133152.JPG)
4 |
SCREW OF FAIRING M5X25 OEM PIAGGIO COMMON A LA RANGE-GU98680225 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
5 |
BUSH EN T (DIAMETER INNER MM 6) OEM PIAGGIO COMMON A LA RANGE-AP8221023 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
6 |
RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
7 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 4 |
||||||
|
8 |
FRONT RIGHT INDICATOR OEM MOTO GUZZI 1200 NORGE 2010 > 2016/STELVIO 2009 > 2017-978428 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
9 |
AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332 More informationQuantity required : 2 |
||||||
|
10 |
978427-INDIC DIREZ ANT SX * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/0/5/2/img/133052.jpg)
11 |
SCREW BTR HEAD BOMBEE (4X12) OEM PIAGGIO COMMON A LA RANGE-GU98370412 More informationQuantity required : 3 |
||||||
|
12 |
883463-CLAXON TONO L More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
13 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
14 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/4/7/img/132747.jpg)
15 |
WASHER ELASTIC (5. 3X10X0. 5) OEM PIAGGIO COMMON A LA RANGE-GU95129100 More informationQuantity required : 2 |
||||||
|
16 |
GU95021105-WASHER EVENT. More informationQuantity required : 2 |
||||||
|
17 |
GU92650035-NUT FLANGE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/7/img/71177.jpg)
18 |
NUT SHEET METAL (M4) OEM PIAGGIO COMMON A LA RANGE-AP8102381 More informationQuantity required : 2 |
||||||
|
19 |
GU98680125-SCREW M4X25 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/7/5/img/132275.jpg)
20 |
GU91120507-BUSH More informationQuantity required : 2 |
||||||
|
21 |
2R000006-PORTALAMPADA PROIETTORE ANTERIORE * More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/2/9/1/img/98291.jpg)
22 |
COIFFE DE HEADLAMP OEM MOTO GUZZI 1200 STELVIO 2009 >-2R000007 More informationQuantity required : 2 |
