Vehicle Exploded View - MOTO-GUZZI STELVIO 1200 1200 2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

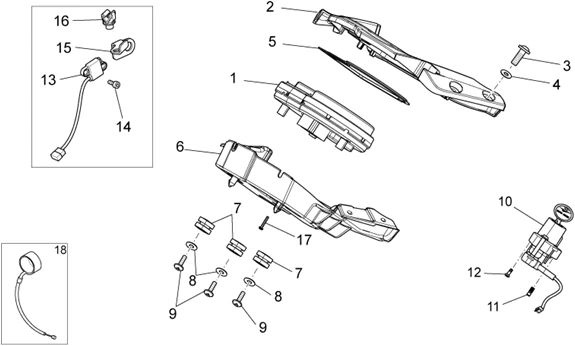

Chassis : 33.23 TABLEAU DE BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/520/Stelvio_1200_1200_2008_33.23.PNG)
1 |
883341 - CRUSCOTTO STELVIO More informationQuantity required : 1 |
||||||
|
2 |
97842400Y11-CORNICE CRUSCOTTO GREY * More informationQuantity required : 1 |
||||||
|
3 |
GU98710215 - VIS M5X15 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/8/6/5/img/101865.jpg)
4 |
WASHER PLATE NYLON (5. 5X12X1) OEM PIAGGIO COMMON A LA RANGE-GU01577830 More informationQuantity required : 4 |
||||||
|
5 |
978449-GUARNIZIONE CRUSCOTTO More informationQuantity required : 1 |
||||||
|
6 |
978633-BRACKET CRUSCOTTO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/1/img/72271.jpg)
7 |
RUBBER SILENBLOC OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8220150 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/7/img/71847.jpg)
8 |
WASHER PLATE (5X20X1. 5) OEM PIAGGIO COMMON A LA RANGE-AP8150255 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/7/img/71897.jpg)
9 |
SCREW CRUCIFORME (5X15) TARAUD OEM PIAGGIO COMMON A LA RANGE-AP8150509 More informationQuantity required : 3 |
||||||
|
10 |
GU05782530-BLOC STARTER MOTOR-BLOC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/1/img/71931.jpg)
11 |
SCREW A ARRACHEMENT/AUTO-CASSANTE BTR (8X28) OEM PIAGGIO COMMON A LA RANGE-AP8152238 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/0/img/67410.jpg)
12 |
SCREW BTR (8X30) OEM PIAGGIO COMMON A LA RANGE-600123 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/8/0/1/img/98801.jpg)
13 |
SENSOR FOR SPEEDOMETER "PIAGGIO GENUINE PART" MOTO-GUZZI BELLAGIO, GRISO, STELVIO -883768 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/0/img/71910.jpg)
14 |
SCREW BTR (4X10) OEM PIAGGIO COMMON A LA RANGE-AP8152043 More informationQuantity required : 2 |
||||||
|
15 |
GU06765500-GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
16 |
AP8121882-GUIDE-CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
17 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/0/8/8/6/img/100886.jpg)
18 |
ANTENNE DISPOSITIF ANTI-DEMARRAGE OEM MOTO GUZZI BREVA, NORGE, STELVIO-981087 More informationQuantity required : 1 |
