Vehicle Exploded View - MOTO-GUZZI STELVIO 1200 1200 2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

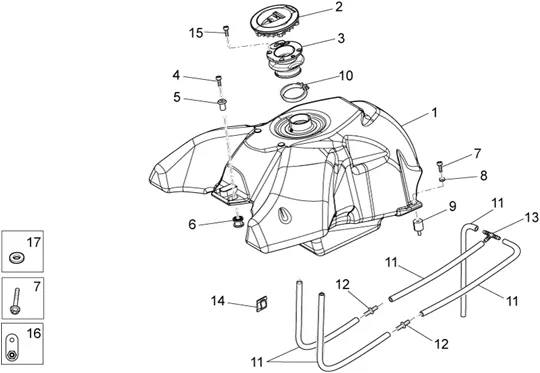

Chassis : 33.14 RÉSERVOIR ESSENCE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/520/Stelvio_1200_1200_2008_33.14.PNG)
1 |
883393 - SERBATOIO BENZINA USA More informationQuantity required : 1 |
||||||
|
1 |
978452-TANK BENZINA More informationQuantity required : 1 |
||||||
|
2 |
GU05103930 - BOUCHON RESERVOIR More informationQuantity required : 1 |
||||||
|
3 |
978642-SOFFIETTO TANK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/5/5/img/133155.jpg)
4 |
SCREW BTR (6X40) OEM PIAGGIO COMMON A LA RANGE-GU98680340 More informationQuantity required : 2 |
||||||
|
5 |
GU06107100-BUSH ATTACHE TANK More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/7/img/71757.jpg)
6 |
RUBBER OEM PIAGGIO COMMON A LAGAMME-AP8144328 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
7 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 3 |
||||||
|
8 |
GU95100141-WASHER 6, 5X20X2 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/1/img/73551.jpg)
9 |
RUBBER MOUNT OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU93222023 More informationQuantity required : 2 |
||||||
|
10 |
GU93306020 - COLLIER More informationQuantity required : 1 |
||||||
|
11 |
896570-HOSE More informationQuantity required : 5 |
||||||
|
12 |
GU06704700-FITTING More informationQuantity required : 2 |
||||||
|
13 |
AP8104666-FITTING 3 VOIES More informationQuantity required : 1 |
||||||
|
14 |
AP8120708 - GUIDE-CABLE ADH.NOIR More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/2/0/7/img/133207.jpg)
15 |
SCREW BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-GU98692216 More informationQuantity required : 4 |
||||||
|
16 |
Plaquette |
||||||
|
17 |
GU95100125-WASHER More informationQuantity required : 2 |
