Vehicle Exploded View - MOTO-GUZZI STELVIO 1200 1200 2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

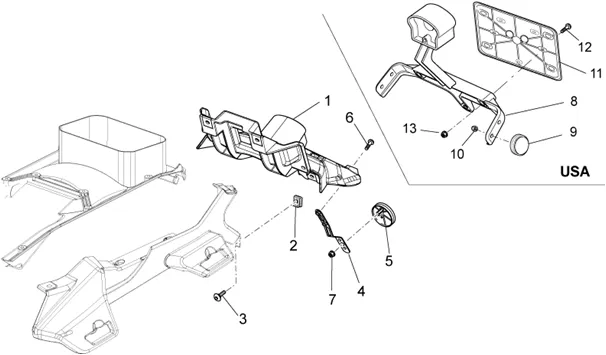

Chassis : 33.21 CARROSSERIE AR.II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/520/Stelvio_1200_1200_2008_33.21.PNG)
1 |
978425-PORTATARGA More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
2 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
3 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 2 |
|||||||||
|
3 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/0/2/img/71702.jpg)
4 |
BRACKET DE CATADIOPTRE REAR OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-AP8134448 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/5/img/72325.jpg)
5 |
CATADIOPTRE REAR OEM PIAGGIO COMMON A LA RANGE-AP8224164 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/5/img/71935.jpg)
6 |
SCREW BTR HEAD BOMBEE (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152268 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
7 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066 More informationQuantity required : 1 |
|||||||||
|
8 |
883214-SUPP PORTATARGA USA More informationQuantity required : 1 |
|||||||||
|
9 |
CATADIOPTRE REAR OEM PIAGGIO COMMON A LA RANGE-AP8224164 More informationQuantity required : 2 |
|||||||||
|
10 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/1/img/71801.jpg)
11 |
BRACKET DE PLATE IMMATRICULATION OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI ET MAXI SCOOTER APRILIA-AP8149034 More informationQuantity required : 1 |
|||||||||
|
12 |
GU98223530-SCREW More informationQuantity required : 2 |
|||||||||
|
13 |
GU92650035-NUT FLANGE More informationQuantity required : 2 |
|||||||||
