Vehicle Exploded View - MOTO-GUZZI STELVIO 1200 1200 2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

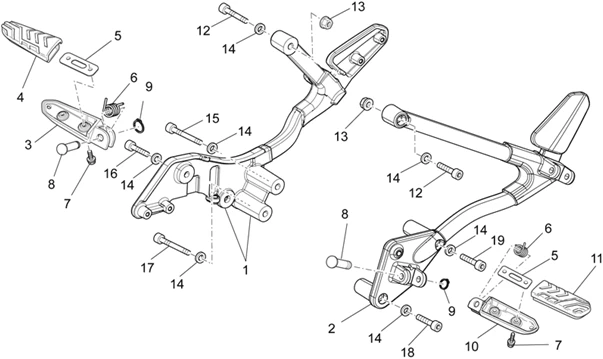

Chassis : 33.04 R-PIED PILOTE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/520/Stelvio_1200_1200_2008_33.04.PNG)
1 |
883102-BRACKET PEDANA DX COMPLETA More informationQuantity required : 1 |
|||||||||
|
2 |
883103-BRACKET PEDANA SX COMPLETO More informationQuantity required : 1 |
|||||||||
|
3 |
8587396-EXHAUST MANIFOLD CYLINDER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/8/9/img/71789.jpg)
3 |
RIGHT RIDER FOOTREST "PIAGGIO GENUINE PART" MOTO-GUZZI BREVA, STELVIO, GRISO, NORGE, V7, V9, BELLAGIO/APRILIA 750-900 SHIVER, 50-125 TUONO, 650 PEGASO -AP81450345 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/7/5/img/73475.jpg)
4 |
RUBBER OF REST FOOT RIGHT OEM PIAGGIO MOTO-GUZZI NORGE, BREVA, STELVIO, BELLAGIO, V7, NEVADA/APRILIA SHIVER, PEGASO, DORSODURO-GU32443210 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/7/1/img/73471.jpg)
5 |
PLATE OF REST FOOT OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-GU32441210 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/1/0/img/72310.jpg)
6 |
SPRING FOOTREST PILOTE OEM PIAGGIO MOTO-GUZZI BREVA, NORGE, STELVIO, V7, V9, V85/APRILIA 750-900 SHIVER-AP8221277 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
7 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/7/3/img/71473.jpg)
8 |
PIVOT REST-FEET OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI/APRILIA-AP8121567 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/8/1/img/71981.jpg)
9 |
CLIPS/CIRCLIPS (D-8) OEM PIAGGIO COMMON A LA RANGE-AP8152409 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/5/5/2/0/img/175520.jpg)
10 |
2B006169 - R-PIED PILOTE G More informationQuantity required : 1 |
|||||||||
|
10 |
2B006169 - R-PIED PILOTE G More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/7/6/img/73476.jpg)
11 |
RUBBER OF REST FOOT LEFT OEM PIAGGIO MOTO-GUZZI NORGE, BREVA, STELVIO, BELLAGIO, V7, NEVADA/APRILIA SHIVER, PEGASO, DORSODURO-GU32443211 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/5/9/img/133159.jpg)
12 |
SCREW BTR (8X35) OEM PIAGGIO COMMON A LA RANGE-GU98680435 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
13 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
14 |
WASHER (8, 4X13X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU14615901 More informationQuantity required : 7 |
|||||||||
|
15 |
GU98680480-SCREW More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/3/2/img/67332.jpg)
16 |
SCREW BTR (8X25) CALIPER OU SHOCK ABSORBER OEM PIAGGIO COMMON A LA RANGE-597150 More informationQuantity required : 1 |
|||||||||
|
17 |
GU98680465-SCREW More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/7/2/img/73572.jpg)
18 |
SCREW BTR (8X60) OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU98680460 More informationQuantity required : 1 |
|||||||||
|
19 |
VIS |
|||||||||
