Vehicle Exploded View - MOTO-GUZZI STELVIO 1200 1200 2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

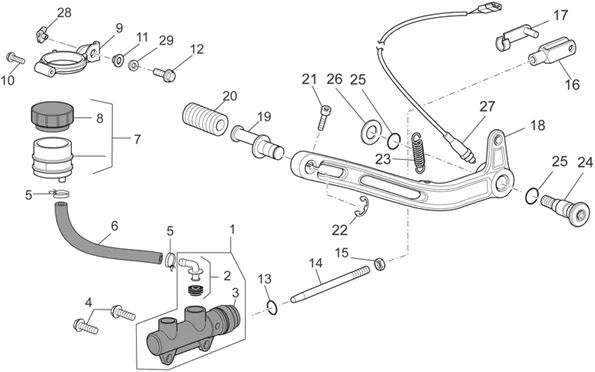

Chassis : 33.36 MAÎT.CYL. FREIN AR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/520/Stelvio_1200_1200_2008_33.36.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/8/7/4/img/128874.jpg)
1 |
BRAKE MASTER CYLINDER REAR OEM MOTO GUZZI NORGE, STELVIO-GU05666930 More informationQuantity required : 1 |
|||||||||
2 |
AP8113594-FITTING PUMP REAR More informationQuantity required : 1 |
|||||||||
|
3 |
SOUFFLET EN RUBBER ROD OF PUMP BRAKE REAR APRILIA/MOTO GUZZI-AP8113288 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
4 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
5 |
CLAMP HOSE (10, 1) OEM PIAGGIO COMMON A LA RANGE-AP8101595 More informationQuantity required : 2 |
|||||||||
|
6 |
GU00823950050-T GOMMA 5X9 More informationQuantity required : 1 |
|||||||||
|
7 |
GU05663530-RESERV. OIL FREINS More informationQuantity required : 1 |
|||||||||
|
8 |
GU17661052-CAP TANK More informationQuantity required : 1 |
|||||||||
|
9 |
GU05666030-BRACKET TANK More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
10 |
SCREW PARKER (5X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152329 More informationQuantity required : 1 |
|||||||||
|
11 |
AP8221145-" BUSH EN " " T " " * " More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
12 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/7/img/71387.jpg)
13 |
O-RING MAITRE CYLINDER REAR (OR112) OEM PIAGGIO COMMON A LA RANGE-AP8120178 More informationQuantity required : 1 |
|||||||||
|
14 |
977041-ASTA NUDA PUMP BRAKE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/2/img/71812.jpg)
15 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150026 More informationQuantity required : 1 |
|||||||||
|
15 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150026 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/7/img/71287.jpg)
16 |
FOURCHETTE DE ROD OF BRAKE MASTER CYLINDER REAR OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8113081 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/8/img/71288.jpg)
17 |
AGRAPHE PEDALE SELECTEUR OEM PIAGGIO APRILIA 1000 CAPONORD, 750 DORSODURO, 660 RS/MOTO-GUZZI V7, V9, V85 STELVIO, GRISO-AP8113082 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/5/3/0/img/108530.jpg)
18 |
LEVER/PEDAL OF BRAKE REAR OEM PIAGGIO MOTO-GUZZI 850-1100-1200 GRISO 2005 >, 1200 STELVIO 2008 >, 940 BELLAGIO 2007 > GU06677000 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/5/2/img/71452.jpg)
19 |
ROD BRAKE LEVER REAR OEM PIAGGIO FOR MOTORCYCLE-GUZZI STELVIO 2024, 850-1200 NORGE, BREVA, 1200 SPORT/ROD SELECTEUR DE VITESSES RANGE MOTO APRILIA-AP8121221 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/2/img/71422.jpg)
20 |
RUBBER BRAKE LEVER REAR OU SELECTEUR OEM PIAGGIO FOR MOTORCYCLE-GUZZI/APRILIA-AP8120912 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/7/9/img/133179.jpg)
21 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-GU98682316 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/1/img/71891.jpg)
22 |
CLIPS/CIRCLIPS DIAMETRE 9MM OEM PIAGGIO COMMON A LA RANGE-AP8150462 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/9/9/img/71499.jpg)
23 |
SPRING PEDAL OF BRAKE OEM MOTO GUZZI V7, V9, V85-AP8121927 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/5/7/7/5/img/215775.jpg)
24 |
PIVOT/SCREW OF PEDAL OF BRAKE REAR OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-2B012762 More informationQuantity required : 1 |
|||||||||
|
24 |
REAR BRAKE PEDAL PIN "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA ET MOTO-GUZZI -884033 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/3/8/img/71738.jpg)
25 |
O-RING (11, 11X1, 78) OEM PIAGGIO COMMON A LA RANGE-AP8144007 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/6/img/73556.jpg)
26 |
WASHER (10, 5X22X2, 5) COMMON A LA RANGE MOTO GUZZI-GU95008310 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/1/img/71281.jpg)
27 |
CONTACTEUR LAMP STOP REAR OEM PIAGGIO 1000 CAPONORD, FUTURA, 1000 RSV-2, RSV-4, 750 SHIVER/MOTO-GUZZI 1100-1200 BREVA, GRISO, 1200 SPORT, STELVIO, 850-1200 NORGE, 940 BELLAGIO-AP8112996 More informationQuantity required : 1 |
|||||||||
|
28 |
GU28576592-NUT CLAMP M6 More informationQuantity required : 1 |
|||||||||
|
29 |
GU95021206-WASHER More informationQuantity required : 1 |
|||||||||
