Vehicle Exploded View - GILERA STALKER 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

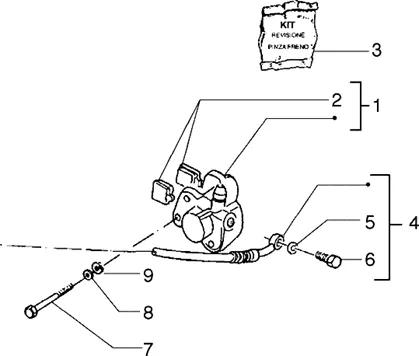

Suspensions-roues : T33 ETRIER DE FREIN
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/653/Stalker_1998-2005_T33.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/9/2/3/img/82923.jpg)
1 |
BRAKE CALIPER FRONT OEM PIAGGIO 50 NRG 1998 > 2013 >, TYPHOON 1998 > 2011, 125 TYPHOON 1998 > 2005/GILERA 50 STALKER 1998 > 2011, RUNNER 1998 > 2005-600734 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/0/1/2/img/68012.jpg)
2 |
BRAKE PAD OEM PIAGGIO 50 TYPHOON AV, NRG AV 1998 > 2005/GILERA 50 RUNNER AV, STALKER AV 1998 > 2005 (PAIRE)-647172 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/6/3/1/img/79631.jpg)
3 |
KIT REVISION BRAKE CALIPER FRONT GRIMECA OEM PIAGGIO 50 COMMON A LA RANGE < 2005-498442 More informationQuantity required : 1 |
||||||
3 |
498850 - KIT REVISION ETRIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/9/6/5/img/82965.jpg)
4 |
FRONT BRAKE HOSE "PIAGGIO GENUINE PART" GILERA 50 STALKER -601027 More informationQuantity required : 1 |
||||||
|
5 |
JOINT |
||||||
|
6 |
VIS |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/3/2/img/67332.jpg)
7 |
SCREW BTR (8X25) CALIPER OU SHOCK ABSORBER OEM PIAGGIO COMMON A LA RANGE-597150 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
8 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
9 |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 2 |
