Vehicle Exploded View - GILERA STALKER 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

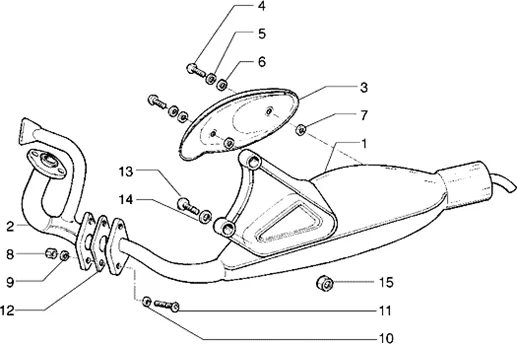

Moteur : T17 SILENCIEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/653/Stalker_1998-2005_T17.PNG)
1 |
479753 - POT ECHAP STALKER More informationQuantity required : 1 |
|||||||||
|
1 |
SILENCIEUX |
|||||||||
|
1 |
|
|||||||||
|
2 |
479756 - RACCORD ECHAP More informationQuantity required : 1 |
|||||||||
|
2 |
483221-FITTING EXHAUST More informationQuantity required : 1 |
|||||||||
|
2 |
TUBE |
|||||||||
|
2 |
TUYAU |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/7/5/0/img/92750.jpg)
2 |
EXHAUST PIPE "PIAGGIO GENUINE PART" 50 NRG MC2, NRG EXTREME/GILERA 50 STALKER, RUNNER -827197- More informationQuantity required : 1 |
|||||||||
|
3 |
479301 - PROTECTION ECHAP More informationQuantity required : 1 |
|||||||||
|
3 |
PROTECTION POT |
|||||||||
|
3 |
PROTECTION |
|||||||||
|
4 |
SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-1A003111 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/4/0/img/66440.jpg)
4 |
SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-433800 More informationQuantity required : 3 |
|||||||||
|
4 |
SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-1A003111 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
5 |
WASHER GROWER (5, 1X8, 5X1, 5) OEM PIAGGIO COMMON A LA RANGE-016405 More informationQuantity required : 2 |
|||||||||
|
6 |
003055-WASHER More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/7/img/63837.jpg)
7 |
WASHER ELASTIC (5, 3X10) OEM PIAGGIO COMMON A LA RANGE-006965 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/8/3/0/img/86830.jpg)
8 |
NUT BORGNE (M6) OEM PIAGGIO COMMON A LA RANGE-648349 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
8 |
NUT (M6) EXHAUST OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288245 More informationQuantity required : 2 |
|||||||||
|
8 |
NUT BORGNE (M6) OEM PIAGGIO COMMON A LA RANGE-648349 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
9 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 2 |
|||||||||
|
10 |
709003-WASHER More informationQuantity required : 2 |
|||||||||
|
10 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 2 |
|||||||||
|
11 |
436502 - VIS More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/0/img/65640.jpg)
11 |
SCREW TH (6X18) OEM PIAGGIO COMMUNA LA RANGE-031089 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/0/6/6/img/77066.jpg)
12 |
GASKET- FROM PIPE TO EXHAUST MAIN BODY "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 1995>1999 -259198- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/0/6/9/img/77069.jpg)
12 |
259310 - JOINT ECHPT SFERA 80 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/5/6/5/img/78565.jpg)
13 |
SCREW BTR (8X30) MOUNTING D'ECLAIRAGE FRONT OEM PIAGGIO-431740 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/5/5/img/69355.jpg)
13 |
SCREW BTR (8X75) OEM PIAGGIO COMMON A LA RANGE-845591 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/5/6/7/img/78567.JPG)
14 |
WASHER ELASTIC (8X14X2) OEM PIAGGIO COMMON A LA RANGE HISTORIQUE < 2005-431744 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/7/img/69107.jpg)
14 |
WASHER (8, 2X16X2, 2) OEM PIAGGIO COMMON A TOUTE LA RANGE-834187 More informationQuantity required : 1 |
|||||||||
|
15 |
NUT (M6) EXHAUST OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288245 More informationQuantity required : 1 |
|||||||||
|
15 |
WASHER ELASTIC (8X14X2) OEM PIAGGIO COMMON A LA RANGE HISTORIQUE < 2005-431744 More informationQuantity required : 2 |
|||||||||
|
16 |
PROTECTION |
|||||||||
