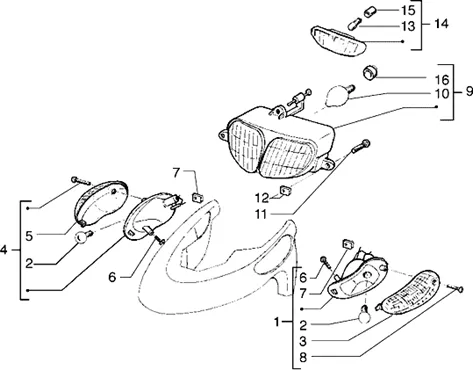

Vehicle Exploded View - GILERA STALKER 50 1998-2005 GILERA

Connexions électriques : T39 PROJECTEUR
Projecteur
Search
294351 - CLIGNOTANT

1
P2R reference P2R reference 77767
Maker reference Maker reference 294351

294351-INDICATOR *

More information

Quantity required : 1

FRONT LEFT INDICATOR WHITE OEM PIAGGIO GILERA 50 STALKER 2004 > 2011-638501

1
P2R reference P2R reference 85489
Maker reference Maker reference 638501

FRONT LEFT INDICATOR WHITE OEM PIAGGIO GILERA 50 STALKER 2004 > 2011-638501

More information

Quantity required : 1

AMPOULE/LAMPE 12V 10W BA15S/R10 OEM PIAGGIO COMMON A LA RANGE-181746

2
P2R reference P2R reference 65798
Maker reference Maker reference 181746

AMPOULE/LAMPE 12V 10W BA15S/R10 OEM PIAGGIO COMMON A LA RANGE-181746

More information

Quantity required : 2

AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332

2
P2R reference P2R reference 67298
Maker reference Maker reference 584332

AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332

More information

Quantity required : 1

294943 - CABOCHON AVT GAUCHE

3
P2R reference P2R reference 77822
Maker reference Maker reference 294943

294943-CABOCHON AVT LEFT

More information

Quantity required : 1

CABOCHON DE FRONT LEFT INDICATOR WHITE OEM PIAGGIO GILERA 50 STALKER 2004 >-638502

3
P2R reference P2R reference 85490
Maker reference Maker reference 638502

CABOCHON DE FRONT LEFT INDICATOR WHITE OEM PIAGGIO GILERA 50 STALKER 2004 >-638502

More information

Quantity required : 1

294352 - CLIGNOTANT

4
P2R reference P2R reference 77768
Maker reference Maker reference 294352

294352 - CLIGNOTANT

More information

Quantity required : 1

FLASHER-FRONT-RIGHT CLEAR "PIAGGIO GENUINE PART" GILERA 50 STALKER 2004> -638503

4
P2R reference P2R reference 85491
Maker reference Maker reference 638503

FLASHER-FRONT-RIGHT CLEAR "PIAGGIO GENUINE PART" GILERA 50 STALKER 2004> -638503

More information

Quantity required : 1

294944 - CABOCHON AVT DROIT

5
P2R reference P2R reference 77823
Maker reference Maker reference 294944

294944 - CABOCHON AVT DROIT

More information

Quantity required : 1

LENS FOR FLASHER-REAR- RIGHT- CLEAR- "PIAGGIO GENUINE PART" GILERA 50 STALKER 2004> -638504-

5
P2R reference P2R reference 85492
Maker reference Maker reference 638504

LENS FOR FLASHER-REAR- RIGHT- CLEAR- "PIAGGIO GENUINE PART" GILERA 50 STALKER 2004> -638504-

More information

Quantity required : 1

SCREW AUTOTARAUDEUSE (3. 6X12) CRUCIFORME ORIGNE PIAGGIO COMMON A LA RANGE-018603

6
P2R reference P2R reference 65445
Maker reference Maker reference 0186035

SCREW AUTOTARAUDEUSE (3. 6X12) CRUCIFORME ORIGNE PIAGGIO COMMON A LA RANGE-018603

More information

Quantity required : 2

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410

7
P2R reference P2R reference 72926
Maker reference Maker reference CM017410

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410

More information

Quantity required : 2

009000 - VIS S00900000

8
P2R reference P2R reference 63862
Maker reference Maker reference 0090005

009000-SCREW S00900000

More information

Quantity required : 2

HEADLAMP "PIAGGIO GENUINE PART" GILERA 50 STALKER -294385

9
P2R reference P2R reference 77770
Maker reference Maker reference 294385

HEADLAMP "PIAGGIO GENUINE PART" GILERA 50 STALKER -294385

More information

Quantity required : 1

AMPOULE/LAMPE 12V 35/35W S2 OEM PIAGGIO COMMON A LA RANGE-219528

10
P2R reference P2R reference 65942
Maker reference Maker reference 219528

AMPOULE/LAMPE 12V 35/35W S2 OEM PIAGGIO COMMON A LA RANGE-219528

More information

Quantity required : 1

SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249

11
P2R reference P2R reference 67113
Maker reference Maker reference 575249

SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249

More information

Quantity required : 2

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

12
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 2

AMPOULE/LAMPE 12V 3W W2, 1X9, 5D OEM PIAGGIO COMMON A LA RANGE-294131

13
P2R reference P2R reference 66269
Maker reference Maker reference 294131

AMPOULE/LAMPE 12V 3W W2, 1X9, 5D OEM PIAGGIO COMMON A LA RANGE-294131

More information

Quantity required : 1

LAMP DE POSITION/VEILLEUSE FRONT MAXI SCOOTER OEM PIAGGIO 125-250-300-400-500 MP3 2008 > 2014/GILERA 50 STALKER 1998 > 2011, 500 FUOCO 2007 >-294433

14
P2R reference P2R reference 77773
Maker reference Maker reference 294433

LAMP DE POSITION/VEILLEUSE FRONT MAXI SCOOTER OEM PIAGGIO 125-250-300-400-500 MP3 2008 > 2014/GILERA 50 STALKER 1998 > 2011, 500 FUOCO 2007 >-294433

More information

Quantity required : 1

294848 - PORTE AMPOULE AR

15
P2R reference P2R reference 66277
Maker reference Maker reference 294848

294848 - PORTE AMPOULE AR

More information

Quantity required : 1

BULB HOLDER - FOR HEADLAMP "PIAGGIO GENUINE PART" GILERA 50 STALKER -580041

16
P2R reference P2R reference 81406
Maker reference Maker reference 580041

BULB HOLDER - FOR HEADLAMP "PIAGGIO GENUINE PART" GILERA 50 STALKER -580041

More information

Quantity required : 1
