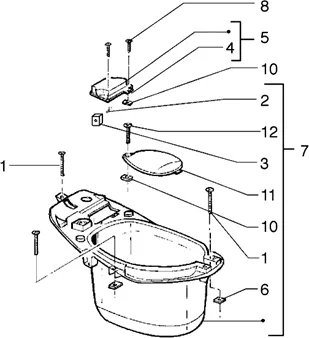

Vehicle Exploded View - GILERA STALKER 50 1998-2005 GILERA

Châssis : T22 PORTE CASQUE
Porte casque
Search
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249

1
P2R reference P2R reference 67113
Maker reference Maker reference 575249

SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249

More information

Quantity required : 5

RIVET MOUNTING ELEMENT DE CARROSSERIE OEM PIAGGIO COMMON A LA RANGE-182302

2
P2R reference P2R reference 65802
Maker reference Maker reference 182302

RIVET MOUNTING ELEMENT DE CARROSSERIE OEM PIAGGIO COMMON A LA RANGE-182302

More information

Quantity required : 1

BRACKET DOOR FUSIBLE OEM PIAGGIO COMMON A LA RANGE-290405

3
P2R reference P2R reference 66242
Maker reference Maker reference 290405

BRACKET DOOR FUSIBLE OEM PIAGGIO COMMON A LA RANGE-290405

More information

Quantity required : 1

BUFFER DE SEAT OEM PIAGGIO COMMON A LA RANGE-297446

4
P2R reference P2R reference 66300
Maker reference Maker reference 297446

BUFFER DE SEAT OEM PIAGGIO COMMON A LA RANGE-297446

More information

Quantity required : 1

COVER DE BATTERY OEM PIAGGIO 50 STALKER-575993

5
P2R reference P2R reference 80730
Maker reference Maker reference 575993

COVER DE BATTERY OEM PIAGGIO 50 STALKER-575993

More information

Quantity required : 1

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

6
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 5

UNDERSEAT COMPARTMENT A CASQUE OEM PIAGGIO GILERA 50 STALKER 1998 > 2011-299100

7
P2R reference P2R reference 78040
Maker reference Maker reference 299100

UNDERSEAT COMPARTMENT A CASQUE OEM PIAGGIO GILERA 50 STALKER 1998 > 2011-299100

More information

Quantity required : 1

SCREW OF FAIRING (3X18) OEM PIAGGIO COMMON A TOUTE LA RANGE-258249

8
P2R reference P2R reference 66028
Maker reference Maker reference 258249

SCREW OF FAIRING (3X18) OEM PIAGGIO COMMON A TOUTE LA RANGE-258249

More information

Quantity required : 2

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410

10
P2R reference P2R reference 72926
Maker reference Maker reference CM017410

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410

More information

Quantity required : 3

299317 - FOND COFFRE

11
P2R reference P2R reference 78056
Maker reference Maker reference 299317

299317 - FOND COFFRE

More information

Quantity required : 1

SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349

12
P2R reference P2R reference 66035
Maker reference Maker reference 259349

SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349

More information

Quantity required : 1
