Vehicle Exploded View - GILERA STALKER 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

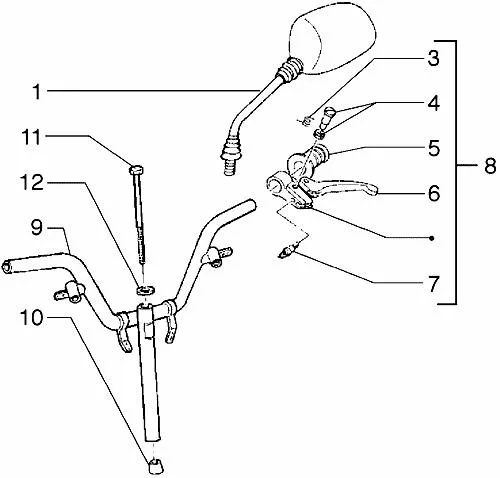

Guidon : T34 PIECES COMPOSANT LE GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/653/Stalker_1998-2005_T34.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/7/4/1/img/79741.jpg)
1 |
LEFT MIRROR OEM PIAGGIO GILERA 50 STALKER 1998 > 2011-560897 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/7/img/66067.jpg)
3 |
SPRING DE BRAKE LEVER LEFT OEM PIAGGIO COMMON A LA RANGE WITH BRAKE TAMBOUR-267948 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/8/img/66048.jpg)
4 |
SCREW WITH NUT BRAKE LEVER OEM PIAGGIO COMMON A LA RANGE-265249 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/7/8/9/img/79789.jpg)
5 |
GRIP/REVETEMENT LEFT OEM PIAGGIO GILERA 50 STALKER 2011 <-561530 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/1/1/2/img/80112.jpg)
6 |
BRAKE LEVER SCOOT OEM PIAGGIO 50 ZIP 2000 >, NRG 2000 >/GILERA 50 STALKER 2005 > LEFT (GRIMECA)-564682 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/9/img/67189.jpg)
7 |
INTERRUPTEUR LAMP STOP OEM PIAGGIO 50 NRG, ZIP, TYPHOON, LIBERTY, 125 X9, VESPA LXV, 250-300 VESPA GTV/APRILIA 50 SR H2O, 125 ATLANTIC, RS, SPORT-CITY/GILERA 50 STALKER-580953 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/1/1/3/img/80113.jpg)
8 |
COMPLETE LEFT HANDLE "PIAGGIO GENUINE PART" GILERA 50 STALKER 1997> -564684- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/7/4/0/img/79740.jpg)
9 |
HANDLEBAR "PIAGGIO GENUINE PART" GILERA 50 STALKER -5608964 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/5/1/7/img/81517.jpg)
10 |
CONE - FOR HANDLEBAR TIGHTENING PIAGGIO 50 ZIP 1998>2003/GILERA 50 STALKER -581182 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/9/0/6/img/79906.jpg)
11 |
563332 - TIRANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/9/0/5/img/79905.jpg)
12 |
WASHER EXPANDEUR STEERING OEM PIAGGIO 50 ZIP-563327 More informationQuantity required : 1 |
