Vehicle Exploded View - GILERA STALKER 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

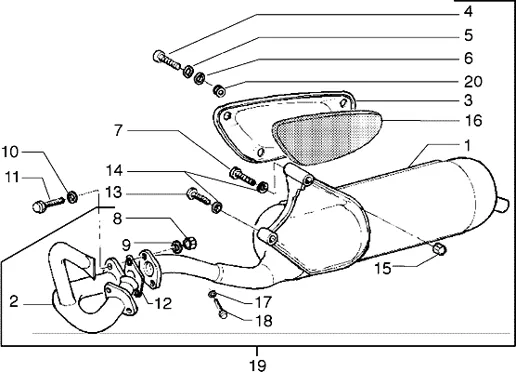

Moteur : T17/A SILENCIEUX CATALYTIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/653/Stalker_1998-2005_T17_A.PNG)
1 |
826290 - POT D'ECHAPPEMENT COMPL. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/1/8/4/img/93184.jpg)
1 |
EXHAUST "PIAGGIO GENUINE PART" GILERA 50 STALKER 2000>2011 (CATALYSED) -8739965 More informationQuantity required : 1 |
|||||||||
|
2 |
825681 - TUYAU ECHAPP. More informationQuantity required : 1 |
|||||||||
|
3 |
825783 - PROTECTION More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/0/9/img/68909.jpg)
3 |
PROTECTOR/SHEET METAL DE SILENCER EXHAUST OEM PIAGGIO 50 FLY, NRG, TYPHOON, ZIP/GILERA 50 STALKER/APRILIA 50 SR-830325 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/4/0/img/66440.jpg)
4 |
SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-433800 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
5 |
WASHER GROWER (5, 1X8, 5X1, 5) OEM PIAGGIO COMMON A LA RANGE-016405 More informationQuantity required : 4 |
|||||||||
|
6 |
825775 - RONDELLE More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/5/5/img/69355.jpg)
7 |
SCREW BTR (8X75) OEM PIAGGIO COMMON A LA RANGE-845591 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/8/3/0/img/86830.jpg)
8 |
NUT BORGNE (M6) OEM PIAGGIO COMMON A LA RANGE-648349 More informationQuantity required : 2 |
|||||||||
|
8 |
NUT BORGNE (M6) OEM PIAGGIO COMMON A LA RANGE-648349 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
9 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 2 |
|||||||||
|
10 |
709003-WASHER More informationQuantity required : 2 |
|||||||||
|
11 |
436502 - VIS More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/0/6/6/img/77066.jpg)
12 |
GASKET- FROM PIPE TO EXHAUST MAIN BODY "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 1995>1999 -259198- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/2/1/img/69321.jpg)
13 |
SCREW BTR (8X50) OEM PIAGGIO COMMON A LA RANGE-844483 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/7/img/69107.jpg)
14 |
WASHER (8, 2X16X2, 2) OEM PIAGGIO COMMON A TOUTE LA RANGE-834187 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
15 |
NUT (M6) EXHAUST OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288245 More informationQuantity required : 2 |
|||||||||
|
16 |
825584 - COUVERTURE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/2/img/65412.jpg)
17 |
GASKET OBTURATEUR EXHAUST COMMON A L ENSEMBLE DE LA RANGE-016195 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/3/3/img/66433.jpg)
18 |
SCREW/CAP EXHAUST OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-433122 More informationQuantity required : 1 |
|||||||||
|
19 |
826290 - POT D'ECHAPPEMENT COMPL. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/9/1/7/img/92917.jpg)
20 |
WASHER CUVETTE EXHAUST OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500 CC-834643 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/4/4/img/66744.jpg)
20 |
GUIDE CABLE (8X10X16) OEM PIAGGIO COMMON A TOUTE LA RANGE-487665 More informationQuantity required : 1 |
|||||||||
|
21 |
RONDELLE |
|||||||||
|
22 |
825824 - ENTRETOISE More informationQuantity required : 4 |
|||||||||
