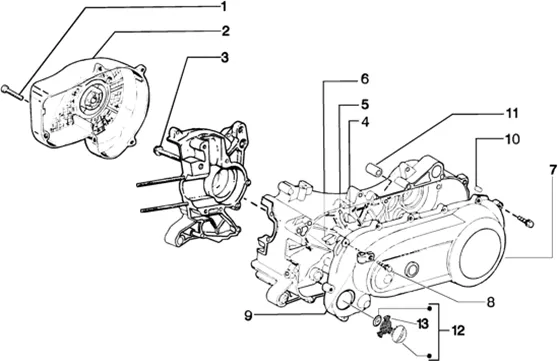

Vehicle Exploded View - GILERA STALKER 50 1998-2005 GILERA

Moteur : T6 COUVERCLE D'EMBRAYAGE-COUVERCLE LIMAÇON
Couvercle d'embrayage-Couvercle limaçon
Search
SCREW CRUCIFORME (5X21) OEM PIAGGIO COMMON A LA RANGE-015856

1
P2R reference P2R reference 65399
Maker reference Maker reference 0158565

SCREW CRUCIFORME (5X21) OEM PIAGGIO COMMON A LA RANGE-015856

More information

Quantity required : 4

286935 - CARTER VENTILATEUR

2
P2R reference P2R reference 77525
Maker reference Maker reference 286935

286935 - CARTER VENTILATEUR

More information

Quantity required : 1

487890 - COUVERCLE

2
P2R reference P2R reference 66763
Maker reference Maker reference 487890

487890 - COUVERCLE

More information

Quantity required : 1

COVER IGNITION OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER 50 CC 2T-833817

2
P2R reference P2R reference 69089
Maker reference Maker reference 833817

COVER IGNITION OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER 50 CC 2T-833817

More information

Quantity required : 1

SCREW FLANGE TH (6X45) OEM PIAGGIO COMMON A LA RANGE-B017632

3
P2R reference P2R reference 72769
Maker reference Maker reference B017632

SCREW FLANGE TH (6X45) OEM PIAGGIO COMMON A LA RANGE-B017632

More information

Quantity required : 8

BUFFER ARRET OEM PIAGGIO COMMON A LA RANGE 2003 <-286207

4
P2R reference P2R reference 66166
Maker reference Maker reference 286207

BUFFER ARRET OEM PIAGGIO COMMON A LA RANGE 2003 <-286207

More information

Quantity required : 1

286206 - PLAQUETTE

5
P2R reference P2R reference 77510
Maker reference Maker reference 286206

286206 - PLAQUETTE

More information

Quantity required : 1

BUFFER STAND OEM PIAGGIO COMMON A LA RANGE-463872

6
P2R reference P2R reference 66537
Maker reference Maker reference 463872

BUFFER STAND OEM PIAGGIO COMMON A LA RANGE-463872

More information

Quantity required : 1

COVER/CASING TRANSMISSION OEM PIAGGIO 50 GILERA STALKER 1998 > 2011-4822975

7
P2R reference P2R reference 78965
Maker reference Maker reference 4822975

COVER/CASING TRANSMISSION OEM PIAGGIO 50 GILERA STALKER 1998 > 2011-4822975

More information

Quantity required : 1

SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838

8
P2R reference P2R reference 66367
Maker reference Maker reference 414838

SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838

More information

Quantity required : 14

CLAMP OEM PIAGGIO COMMON A LA RANGE-216983

9
P2R reference P2R reference 65927
Maker reference Maker reference 216983

CLAMP OEM PIAGGIO COMMON A LA RANGE-216983

More information

Quantity required : 1

BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956

10
P2R reference P2R reference 72696
Maker reference Maker reference B015956

BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956

More information

Quantity required : 2

BUSH SHAFT OF KICK OEM PIAGGIO 50 FLY 2T, LIBERTY 2T, NRG, TYPHOON, VESPA LX 2T/GILERA 50 STALKER, RUNNER-286209

11
P2R reference P2R reference 66167
Maker reference Maker reference 286209

BUSH SHAFT OF KICK OEM PIAGGIO 50 FLY 2T, LIBERTY 2T, NRG, TYPHOON, VESPA LX 2T/GILERA 50 STALKER, RUNNER-286209

More information

Quantity required : 1

CAP/OBTURATEUR DE COVER TRANSMISSION OEM PIAGGIO 50 FLY, LIBERTY, NRG, ZIP, TYPHOON, VESPA-S, VESPA LX, PRIMAVERA, SPRINT/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD-848860

12
P2R reference P2R reference 69583
Maker reference Maker reference 848860

CAP/OBTURATEUR DE COVER TRANSMISSION OEM PIAGGIO 50 FLY, LIBERTY, NRG, ZIP, TYPHOON, VESPA-S, VESPA LX, PRIMAVERA, SPRINT/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD-848860

More information

Quantity required : 1

FILTER COVER DE HOUSING RECYCLAGE DES THROTTLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-826462

13
P2R reference P2R reference 68601
Maker reference Maker reference 826462

FILTER COVER DE HOUSING RECYCLAGE DES THROTTLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-826462

More information

Quantity required : 1
