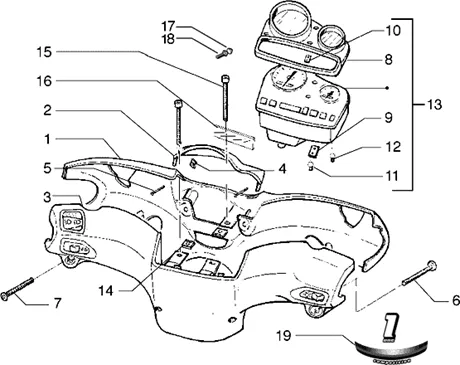

Vehicle Exploded View - GILERA STALKER 50 1998-2005

	P2R reference
	Maker reference	4926005028

COUVRE GUID SIMPLEDISQUE STALK ROUGE 85

	P2R reference	79125
	Maker reference	4926005041

4926005041 - COUVRE GUID SIMPLEDISQUE STALK BLEU 223

	P2R reference
	Maker reference	4929005042

COUVRE GUID STALK DOUBLDISQUE NOIR 197

	P2R reference	79130
	Maker reference	49290050E1

49290050E1 - COUVRE GUID STALK DOUBLE DISQUE GRIS 121

	P2R reference
	Maker reference	49290050G9

COUVRE GUID STALK DOUBLEDISQUE JAUNE 38

	P2R reference	85444
	Maker reference	624910

STEERING COVER- FRONT "PIAGGIO GENUINE PART" GILERA 50 STALKER RAW TO BE PAINT -624910-

	P2R reference	85446
	Maker reference	6249100033

6249100033 - COUVRE GUIDON SIMPLE DISQUE

	P2R reference	85448
	Maker reference	6249100090

6249100090 - COUVRE GUIDON SIMPLE DISQUE

	P2R reference	85449
	Maker reference	62491000A3

62491000A3 - COUVRE GUIDON SIMPLE DISQUE

	P2R reference	85452
	Maker reference	62491000B5

62491000B5 - COUVRE GUIDON SIMPLE DISQUE

	P2R reference	85453
	Maker reference	62491000E1

62491000E1 - COUVRE GUIDON SIMPLE DISQUE

	P2R reference	85456
	Maker reference	62491000G9

62491000G9 - COUVRE GUIDON SIMPLE DISQUE

	P2R reference	79127
	Maker reference	4929005

4929005 - COUVRE GUID STALK DOUBLE DISQUE BRUT

	P2R reference	85455
	Maker reference	62491000F2

62491000F2 - COUVRE GUIDON SIMPLE DISQUE

	P2R reference	85459
	Maker reference	62491000R7

62491000R7 - COUVRE GUIDON SIMPLE DISQUE

	P2R reference
	Maker reference	5812155003

COUVERCLE VIOLET

	P2R reference	81526
	Maker reference	5812155033

5812155033 - DESSUS GUIDON JAU957

	P2R reference	81528
	Maker reference	58121550E1

58121550E1 - CACHE GUIDON SUP GRIS 121

	P2R reference
	Maker reference	58121550R6

Carenage

	P2R reference	84083
	Maker reference	62175900F2

FRONT FAIRING KIT "PIAGGIO GENUINE PART" GILERA 50 STALKER GREY 738/A -62175900F2-

	P2R reference	85351
	Maker reference	624631

624631-COVER INSTRUMENT

	P2R reference
	Maker reference	58121550R7

CACHE GUIDON sup ROUGE 894

	P2R reference	84081
	Maker reference	62175900A3

62175900A3 - PARE BRISE DF

	P2R reference	84082
	Maker reference	62175900E1

PLATE DOOR NUMERO/KIT BULLE OEM PIAGGIO GILERA 50 STALKER GREY-62175900E1

	P2R reference	84080
	Maker reference	621759

FRONT FAIRING KIT "PIAGGIO GENUINE PART" GILERA 50 STALKER RAW TO BE PAINT -621759-

	P2R reference	79738
	Maker reference	560846000C

REAR HANDLEBAR COVER "PIAGGIO GENUINE PART" GILERA 50 STALKER -560846000C-

	P2R reference	158681
	Maker reference	826275

826275 - PLAQUETTE

	P2R reference	66058
	Maker reference	267115

SCREW AUTOTARAUDEUSE (4X16) OEM PIAGGIO COMMON A LA RANGE-267115

	P2R reference	66068
	Maker reference	267958

SCREW AUTOTARAUDEUSE (L 20 MM) OEM PIAGGIO COMMON A LA RANGE-267958

	P2R reference	66293
	Maker reference	296458

SCREW SHEET METAL (L35MM) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-296458

	P2R reference	79143
	Maker reference	494625

GLACE DE INSTRUMENT CLUSTER OEM PIAGGIO GILERA 50 STALKER-494625

	P2R reference	72187
	Maker reference	AP8212406

HORLOGE/MONTRE OEM PIAGGIO 50-125 VESPA LX, VESPA-S, LIBERTY, 125-250-300 VESPA GTS, X7, THREE-WHEELER APE 50/APRILIA 125-250-300-400-500 ATLANTIC, 125 SCARABEO/GILERA 50 STAKER-AP8212406

	P2R reference	79144
	Maker reference	494626

BUTTON/POUSSOIR DE MONTRE OEM PIAGGIO GILERA 50 STALKER-494626

	P2R reference	65760
	Maker reference	164634

AMPOULE/LAMPE 12V 1, 2W CULOT W2X4. 6D BULB T5 TEMOIN WHITE OEM PIAGGIO COMMON A LA RANGE-164634

	P2R reference	65760
	Maker reference	164634

AMPOULE/LAMPE 12V 1, 2W CULOT W2X4. 6D BULB T5 TEMOIN WHITE OEM PIAGGIO COMMON A LA RANGE-164634

	P2R reference	82068
	Maker reference	584472

584472-GR INSTRUMENT

	P2R reference	81520
	Maker reference	581199

581199 - GR INSTRUMENT M99

	P2R reference	81521
	Maker reference	581200

581200 - GROUPE INSTR.

	P2R reference	158681
	Maker reference	826275

826275 - PLAQUETTE

	P2R reference	66276
	Maker reference	294839

SCREW HANDLEBAR END OEM PIAGGIO APRILIA 50-125 RS 2011 >-294839

	P2R reference
	Maker reference	5739140028

DECOR JAUNE

	P2R reference	80280
	Maker reference	5739140029

5739140029 - MONOGRAMME GILERA BLANC

	P2R reference	80281
	Maker reference	5739140031

5739140031 - DECOR GILERA ROUGE

	P2R reference
	Maker reference	5739140033

MONOGRAMME

	P2R reference	84093
	Maker reference	62185700A3

62185700A3 - MONOGRAMME GUIDON 280 ET 738

	P2R reference	84094
	Maker reference	62185700A6

62185700A6 - MONOGRAMME

	P2R reference	76670
	Maker reference	230872

CAPSULE MOUNTING SAUTE VENT OEM PIAGGIO COMMON A LA RANGE-230872

	P2R reference	66301
	Maker reference	297498

SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498

	P2R reference	84093
	Maker reference	62185700A3

62185700A3 - MONOGRAMME GUIDON 280 ET 738

	P2R reference	84094
	Maker reference	62185700A6

62185700A6 - MONOGRAMME
