Vehicle Exploded View - APRILIA SR 125 MOTARD RST 2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

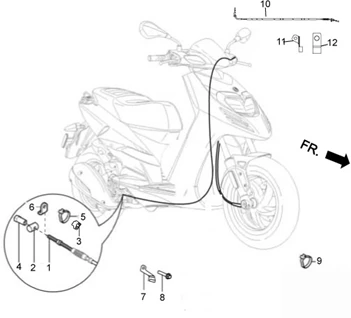

Système de freinage : 06.07 SYSTÈME DE FREINAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1245/SR_125_MOTARD_RST_2023_(EMEA)_06.07.png)
1 |
1C004001-REAR BRAKE TRANSMISSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/4/img/65794.jpg)
2 |
PIVOT TRANSMISSION BRAKE REAR OEM PIAGGIO COMMON A TOUTE LA RANGE-179640 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/9/1/4/img/152914.jpg)
3 |
SPACER CLIP TRANSMISSION OEM PIAGGIO COMMON A LA RANGE-1C001642 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/8/img/66088.jpg)
4 |
NUT REGLAGE BRAKE REAR OEM PIAGGIO COMMON A LA RANGE-270310 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
5 |
HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/7/2/img/67072.jpg)
6 |
PLATE OF FITTING KIT GANIE OEM PIAGGIO COMMON A LA RANGE-564645 More informationQuantity required : 1 |
||||||
|
7 |
667842-CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/0/8/3/img/164083.jpg)
8 |
SCREW FLANGE TH (6X45) OEM PIAGGIO COMMON A LA RANGE-1A003060 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/2/5/2/img/164252.jpg)
9 |
CLAMP BRAKE FRONT OEM APRILIA 125 SR 2018 >-667841 More informationQuantity required : 1 |
||||||
|
10 |
TRANSM. CONTROL THROTTLE APRILIA SR 125-1C004949 More informationQuantity required : 1 |
||||||
|
11 |
1C004874-CLAMP More informationQuantity required : 1 |
||||||
|
12 |
1C004912 CLIP More informationQuantity required : 1 |
