Vehicle Exploded View - APRILIA SR 125 MOTARD RST 2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

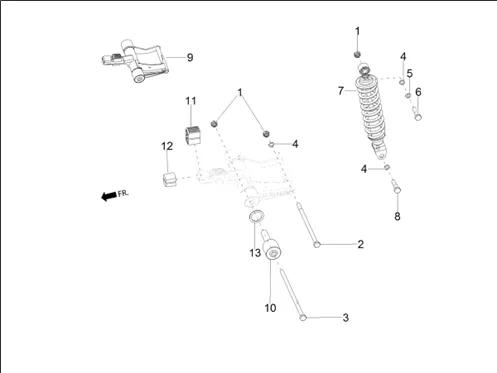

Suspensions : 04.08 AMORTISSEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1245/SR_125_MOTARD_RST_2023_(EMEA)_04.08.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
1 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/7/5/img/152875.jpg)
2 |
SCREW TH (10X210) OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 >-668302 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/7/4/img/152874.jpg)
3 |
SCREW TH (10X250) OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 >-1C002598 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/9/5/img/152895.JPG)
4 |
WASHER PLATE (10X22. 5X1. 7) OEM PIAGGIO COMMON A LA RANGE-B015320 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/9/4/img/152894.JPG)
5 |
WASHER PLATE (10X22. 2X1. 7) OEM PIAGGIO COMMON A LA RANGE-B015321 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/6/8/0/img/114680.jpg)
6 |
SCREW TH (10X45) OEM PIAGGIO COMMON A TOUTE LA RANGE-B024614 More informationQuantity required : 1 |
||||||
7 |
1C002159-SHOCK ABSORBER ARR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/9/img/66069.jpg)
8 |
SCREW FLANGE TH (10X55) MOUNTING REAR SHOCK ABSORBER OEM PIAGGIO COMMON A LA RANGE-268158 More informationQuantity required : 1 |
||||||
|
9 |
1C005078-OEM MOPED SWINGARM COMPLETE More informationQuantity required : 1 |
||||||
|
10 |
RUBBER MOUNT ARM OCSILLANT OEM PIAGGIO 50 TYPHOON/50 SR MOTARD, SXR APRILIA 2018 >-563076 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/0/img/66060.jpg)
11 |
RUBBER MOUNT DE OEM MOPED SWINGARM OEM PIAGGIO 50 NRG, TYPHOON, FLY, LIBERTY/GILERA 50 STALKER, RUNNER-267550 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/1/img/66061.jpg)
12 |
BUFFER/RUBBER MOUNT ARM OCSILLANT OEM PIAGGIO COMMON A LA RANGE-267589 More informationQuantity required : 1 |
||||||
|
13 |
562576-WASHER More informationQuantity required : 2 |
