Vehicle Exploded View - APRILIA SR 125 MOTARD RST 2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

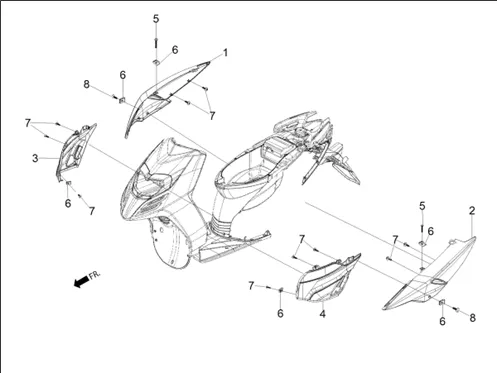

Carrosserie : 02.08 CARÈNE LATERAL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1245/SR_125_MOTARD_RST_2023_(EMEA)_02.08.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/0/0/7/9/img/160079.jpg)
1 |
BODY PANEL/SIDE PANEL REAR RIGHT OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 > GREY 700/C-SB003147000HL More informationQuantity required : 1 |
|||||||||
1 |
SP1B003147000DX-BODY PANEL D More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/7/9/4/img/152794.jpg)
1 |
BODY PANEL/SIDE PANEL REAR RIGHT OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 > WHITE 544-SB003147000BR More informationQuantity required : 1 |
|||||||||
|
1 |
BODY PANEL/SIDE PANEL REAR RIGHT OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 > BRUTE-1B003147 More informationQuantity required : 1 |
|||||||||
|
1 |
SP1B003147000R7-BODY PANEL D More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/7/9/2/img/152792.jpg)
1 |
BODY PANEL/SIDE PANEL REAR RIGHT OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 > BLACK 85/B-SB003147000NL More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/0/0/8/0/img/160080.jpg)
2 |
BODY PANEL/SIDE PANEL REAR LEFT OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 > GREY 700/C-SB003148000HL More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/7/8/8/img/152788.jpg)
2 |
BODY PANEL/SIDE PANEL REAR LEFT OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 > WHITE 544-SB003148000BR More informationQuantity required : 1 |
|||||||||
|
2 |
SP1B003148000DX-BODY PANEL G More informationQuantity required : 1 |
|||||||||
|
2 |
AILE ARRIERE GAUCHE ORIGINE PIAGGIO 50 TYPHOONN 2018>/APRILIA 50 SR MOTARD 2018> BLANC 544 -SB003148000BR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/7/9/0/img/152790.jpg)
2 |
BODY PANEL/SIDE PANEL REAR LEFT OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 > BLACK 85/B-SB003148000NL More informationQuantity required : 1 |
|||||||||
|
2 |
SP1B003148000R7-BODY PANEL G More informationQuantity required : 1 |
|||||||||
|
2 |
BODY PANEL/SIDE PANEL REAR LEFT OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 > BRUTE-1B003148 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/7/8/0/img/152780.jpg)
3 |
COVER REAR RIGHT OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 >-1B005273 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/7/8/1/img/152781.jpg)
4 |
COVER REAR LEFT OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 >-1B005274 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/6/img/66036.jpg)
5 |
SCREW AUTOTARAUDEUSE (4, 2X25) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259372 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
6 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 9 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
7 |
SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793 More informationQuantity required : 10 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
8 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 2 |
|||||||||
