Vehicle Exploded View - APRILIA SR 125 MOTARD RST 2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

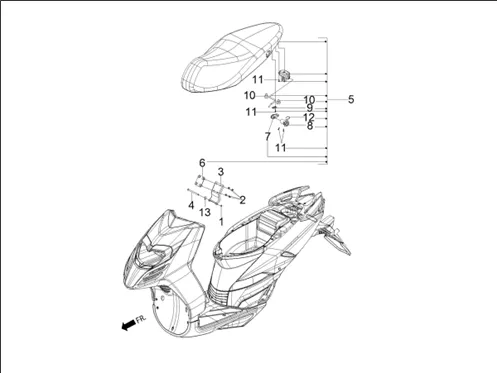

Carrosserie : 02.12 SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1245/SR_125_MOTARD_RST_2023_(EMEA)_02.12.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
1 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 4 |
||||||
2 |
269136-NUT More informationQuantity required : 4 |
||||||
|
3 |
1B007746-CHARNIERE SEAT More informationQuantity required : 1 |
||||||
|
4 |
1B004358-PIVOT CHARNIERE SEAT More informationQuantity required : 1 |
||||||
|
5 |
1B008632000C3-COMPLETE SADDLE More informationQuantity required : 1 |
||||||
|
5 |
1B008632000C1-COMPLETE SADDLE More informationQuantity required : 1 |
||||||
|
5 |
1B008632000C2-COMPLETE SADDLE More informationQuantity required : 1 |
||||||
|
6 |
856467-PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/3/4/img/152834.jpg)
7 |
EXCENTRIQUE DE LOCK DE SEAT OEM PIAGGIO 50 TYPHOON 2018 >-1B003616 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/3/2/img/152832.jpg)
8 |
BRACKET LOCK DE SEAT OEM PIAGGIO 50 TYPHOON/SR MOTARD APRILIA 2018 >-1B003642 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/4/img/66294.jpg)
9 |
PONTET DOIGT DE LOCK OEM PIAGGIO COMMON A LA RANGE-296743 More informationQuantity required : 1 |
||||||
|
10 |
623504-RUBBER MOUNT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/3/5/img/152835.jpg)
11 |
SCREW AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-674163 More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/3/3/img/152833.jpg)
12 |
SPRING BARILLET SEAT OEM PIAGGIO 50 TYPHOON, 50 SR MOTARD, SXR 2018 >-674312 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/9/7/img/63797.jpg)
13 |
CLIPS/CIRCLIPS DIAMETRE 5MM OEM PIAGGIO COMMON A LA RANGE-005965 More informationQuantity required : 4 |
