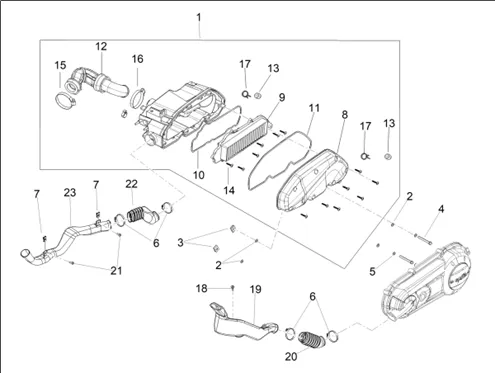

Moteur : 03.05 CORPS FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1245/SR_125_MOTARD_RST_2023_(EMEA)_03.05.png)
1 |
1A018276-CAISSE FILTER COMPLETE More informationQuantity required : 1 |
||||||
|
2 |
B018262-HUB More informationQuantity required : 4 |
||||||
|
3 |
CM259204-PLATE ELASTIC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/1/7/1/img/164171.jpg)
4 |
SCREW FLANGE TH (6X55) OEM PIAGGIO COMMON A LA RANGE-1A003064 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
5 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
6 |
WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/5/img/68495.jpg)
6 |
HOSE CLAMP NYLON TYPE RILSAN 3. 00X200MM OEM PIAGGIO COMMON A LA RANGE-709519 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
7 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 4 |
||||||
|
8 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/6/0/7/7/img/166077.jpg)
9 |
AIR FILTER OEM PIAGGIO 50 SXR APRILIA 2021 > 125 SR MOTARD RST-1A006090 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/1/7/2/img/164172.jpg)
10 |
GASKET AIR FILTER OEM APRILIA 50 SXR 2021 >-1A006092 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/1/7/3/img/164173.jpg)
11 |
GASKET BOX A AIR OEM APRILIA 50 SXR 2021 >-1A006093 More informationQuantity required : 1 |
||||||
|
12 |
1A017890-SLEEVE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/0/1/img/68701.jpg)
13 |
PURGEUR HOUSING DE AIR FILTER OEM PIAGGIO COMMON A LA RANGE SCOOTER 4T ET MAXI SCOOTER-827831 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/5/img/66025.jpg)
14 |
SCREW AUTOTARAUDEUSE (3X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-258146 More informationQuantity required : 13 |
||||||
|
15 |
B019254-CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/5/5/6/img/111556.jpg)
16 |
CLAMP SERRAGE TUBE 40-60 OEM PIAGGIO COMMON A LA RANGE-614188 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/5/img/72895.jpg)
17 |
CLAMP HOSE (D13) COOLING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-CM002910 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/4/img/66034.jpg)
18 |
SCREW CRUCIFORME (D6) DE FAIRING OEM PIAGGIO COMMON A TOUTE LA RANGE-259348 More informationQuantity required : 1 |
||||||
|
19 |
1B006743-DUCTION MANIFOLD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/1/7/9/img/164179.jpg)
20 |
SLEEVE AIR FILTER OEM APRILIA 50 SXR 2021 >-1B003394 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
21 |
SCREW TBC (6X16) OEM PIAGGIO COMMON A LA RANGE-272836 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/1/8/1/img/164181.jpg)
22 |
SLEEVE AIR FILTER OEM APRILIA 50 SXR 2021 >-1B003396 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/1/8/0/img/164180.jpg)
23 |
CONDUITE AIR ASPIRATION OEM APRILIA 50 SXR 2021 >-1B003395 More informationQuantity required : 1 |
