Vehicle Exploded View - APRILIA SR 125 MOTARD RST 2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

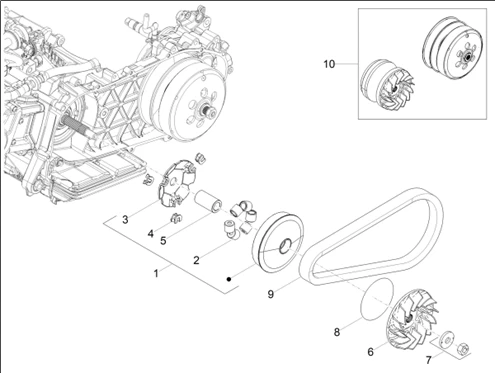

Moteur : 03.24 DEMI-POULIE MOTRICE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1245/SR_125_MOTARD_RST_2023_(EMEA)_03.24.png)
1 |
1A017332 - BOITIER A ROULEAUX COMPLETE More informationQuantity required : 1 |
||||||
|
2 |
1A020099 - ROULEAU More informationQuantity required : 6 |
||||||
|
3 |
1A001745 - CONTRASTE ROULEAUX More informationQuantity required : 1 |
||||||
|
4 |
1A001746 - DOIGT More informationQuantity required : 3 |
||||||
|
5 |
1A002446 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
6 |
1A026610 - COMPLETE TRANSMISSION GROUP More informationQuantity required : 1 |
||||||
|
7 |
1A006988 - ECROU More informationQuantity required : 1 |
||||||
|
8 |
1A002443 - CIRCLIPS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/5/6/1/img/195561.jpg)
9 |
1A018497 - RAW EDGE COG VARIABLE SPEED BELT More informationQuantity required : 1 |
||||||
|
10 |
1A026610 - COMPLETE TRANSMISSION GROUP More informationQuantity required : 1 |
