Vehicle Exploded View - APRILIA SR 125 MOTARD RST 2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

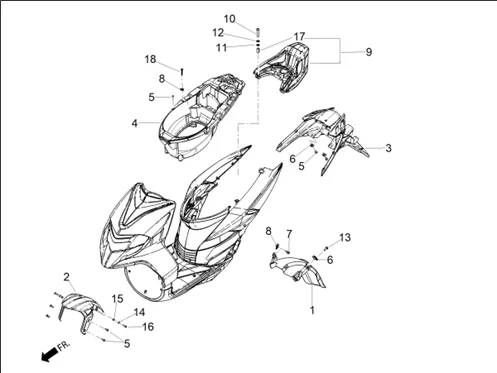

Carrosserie : 02.14 CARROSSERIE POSTERIEURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1245/SR_125_MOTARD_RST_2023_(EMEA)_02.14.png)
1 |
1B004769-GUARD-MUD AR. More informationQuantity required : 1 |
||||||
|
2 |
1B008631-FRONT MUDGUARD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/0/3/img/152803.jpg)
3 |
MUD FLAP/REAR MUDGUARD OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 >-1B005461 More informationQuantity required : 1 |
||||||
|
4 |
1B008964-HELMET CASE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
5 |
SCREW OF FAIRING (3X18) OEM PIAGGIO COMMON A TOUTE LA RANGE-258249 More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
6 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
7 |
SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793 More informationQuantity required : 2 |
||||||
|
8 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 2 |
||||||
|
9 |
1B008638000NT-COMPLETE PASSENGER HANDLE More informationQuantity required : 1 |
||||||
|
10 |
SCREW BTR HEAD BOMBEE (8X35) OEM PIAGGIO COMMON A LA RANGE-970273 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
11 |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
12 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/9/0/img/68890.jpg)
13 |
SCREW FLANGE TH (5X16) OEM PIAGGIO COMMON A LA RANGE-830061 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/4/img/65664.jpg)
14 |
WASHER SPRING (6, 4X16X1) OEM PIAGGIO COMMON A LA RANGE-078307 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/0/9/6/img/149096.jpg)
15 |
NUT FLANGE (M6) OEM PIAGGIO COMMON A LA RANGE-241936 More informationQuantity required : 2 |
||||||
|
16 |
|
||||||
|
17 |
1B003585-BUSH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/8/2/img/96282.jpg)
18 |
SCREW AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178608 More informationQuantity required : 3 |
All the exploded views of this vehicle
-
-
