Vehicle Exploded View - APRILIA SR 125 MOTARD RST 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

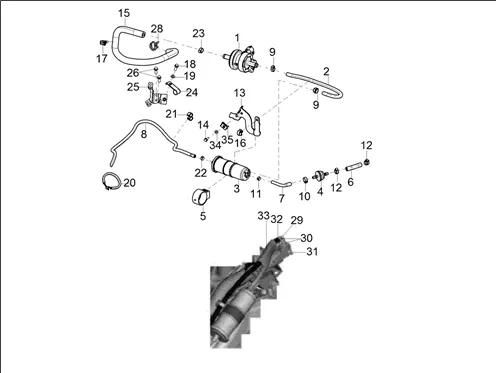

Moteur : 01.20 CANISTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1157/SR_125_MOTARD_RST_2022_(EMEA)_01.20.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/9/0/img/178690.jpg)
1 |
VANNE DE PURGE OEM PIAGGIO 50 SXR 2021 >-1A017882 More informationQuantity required : 1 |
||||||
2 |
CM001237-HOSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/7/3/3/img/174733.jpg)
3 |
CANISTER OEM PIAGGIO 50-125 COMMON A LA RANGE 2021 >-1B002848 More informationQuantity required : 1 |
||||||
|
4 |
1B008067R-VALVE DE SECURITE More informationQuantity required : 1 |
||||||
|
5 |
1B002849 PLATE More informationQuantity required : 1 |
||||||
|
6 |
CM177979-HOSE More informationQuantity required : 1 |
||||||
|
7 |
CM283429-HOSE More informationQuantity required : 1 |
||||||
|
8 |
CM283431 MANIFOLD FUEL STEAM More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/3/img/72863.jpg)
9 |
CLAMP SERRE TUBE OEM PIAGGIO COMMON A LA RANGE-CM001901 More informationQuantity required : 2 |
||||||
|
10 |
CLAMP SERRE TUBE OEM PIAGGIO COMMON A LA RANGE-CM001901 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/3/img/72873.jpg)
11 |
CLAMP HOSE (D10. 5) OEM PIAGGIO COMMON A LA RANGE-CM0019126 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/5/img/72875.jpg)
12 |
CLAMP (14. 5MM) SERRAGE TUBE OEM PIAGGIO COMMON A LA RANGE-CM001914 More informationQuantity required : 2 |
||||||
|
13 |
1B006608-PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
14 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 1 |
||||||
|
14 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 1 |
||||||
|
15 |
CM177978-HOSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/7/img/65967.jpg)
16 |
CLIPS SPRING (D17) OEM PIAGGIO COMMON A LA RANGE-231590 More informationQuantity required : 1 |
||||||
|
17 |
CM006913-SPRING More informationQuantity required : 1 |
||||||
|
18 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 1 |
||||||
|
18 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
19 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
20 |
HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134 More informationQuantity required : 1 |
||||||
|
21 |
667156-CLAMP More informationQuantity required : 2 |
||||||
|
22 |
CLAMP HOSE (D10. 5) OEM PIAGGIO COMMON A LA RANGE-CM0019126 More informationQuantity required : 1 |
||||||
|
23 |
CLAMP (14. 5MM) SERRAGE TUBE OEM PIAGGIO COMMON A LA RANGE-CM001914 More informationQuantity required : 1 |
||||||
|
24 |
1B007084-CLIP More informationQuantity required : 1 |
||||||
|
25 |
1B006711-FLANGE DE BRACKET HOSE DE FUEL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/7/3/img/68173.jpg)
26 |
SCREW BTR HEAD BOMBEE (5X10) OEM PIAGGIO COMMON A LA RANGE-651014 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/0/img/72890.jpg)
28 |
HOSE CLAMP HOSE (7X10) OEM PIAGGIO COMMON A LA RANGE-CM002903 More informationQuantity required : 1 |
||||||
|
29 |
VANNE DE PURGE OEM PIAGGIO 50 SXR 2021 >-1A017882 More informationQuantity required : 1 |
||||||
|
30 |
CLAMP HOSE (D10. 5) OEM PIAGGIO COMMON A LA RANGE-CM0019126 More informationQuantity required : 2 |
||||||
|
31 |
709116-NUT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/5/7/9/img/195579.jpg)
32 |
HOSE/HOSE WITH GUIDE CABLE OEM APRILIA SR 125 MOTARD RST 2022 >-1B008150 More informationQuantity required : 1 |
||||||
|
33 |
CM0074G8-HOSE More informationQuantity required : 1 |
||||||
|
34 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
35 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
