Vehicle Exploded View - APRILIA SR 125 MOTARD RST 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

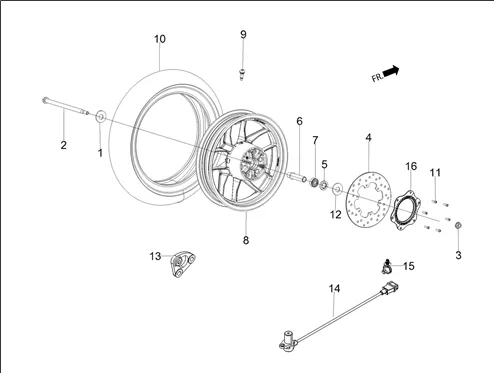

Cadre : 02.19 ROUE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1157/SR_125_MOTARD_RST_2022_(EMEA)_02.19.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/8/9/img/68489.jpg)
1 |
WASHER PLATE (12. 5X20X2) OEM PIAGGIO COMMON A LA RANGE-709037 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/9/0/4/img/152904.jpg)
2 |
WHEEL SPINDLE FRONT OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 >-1C002728 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/7/img/66047.jpg)
3 |
NUT FLANGE (12X1. 25) OEM PIAGGIO COMMON A LA RANGE-261319 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/9/0/2/img/152902.jpg)
4 |
BRAKE DISC FRONT OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR-MOTARD 2018 >-1C003293 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/0/7/img/127507.jpg)
5 |
OIL SEAL (20X36X7) OEM PIAGGIO COMMON A LA RANGE-1C001322 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/9/7/img/152897.jpg)
6 |
SPACER DE FRONT WHEEL OEM PIAGIIO 50 TYPHOON E4 2T/SR MOTARD E4 2T APRILIA 2018 > 2020-1C002415 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/0/2/img/68102.jpg)
7 |
BEARING (15X35X11) DE FRONT WHEEL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-649910 More informationQuantity required : 2 |
||||||
8 |
1C003290 - ROUE AVANT 14" X 2.75" More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/4/img/66094.jpg)
9 |
VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-270991 More informationQuantity required : 1 |
||||||
|
10 |
1C002932-TYRE 120/70-14 " (VEE RUBBER) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/9/7/6/img/75976.jpg)
11 |
SCREW TH (6X22) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-1C000291 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/9/9/img/152899.jpg)
12 |
SPACER DE FRONT WHEEL OEM APRILIA 50 SXR 2021 >-1C002414 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/6/5/2/img/195652.jpg)
13 |
BRACKET CALIPER OEM APRILIA 160 SXR ABS 2021 >-1C006174 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/6/0/img/178660.jpg)
14 |
SENSOR ABS OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000-1100 RSV-4, TUONO V4, 125 RX, SX, RS4/MOTO-GUZZI 1400 CALIFORNIA, 750 V7, 1200 STELVIO/PIAGGIO 350-500 X10, BEVERLY-1D003350 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/9/3/img/127593.jpg)
15 |
CLAMP SERRE CABLE OEM PIAGGIO COMMON A LA RANGE-1D001143 More informationQuantity required : 1 |
||||||
|
16 |
WHEEL SPINDLE FRONT OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 >-1C002728 More informationQuantity required : 1 |
