Vehicle Exploded View - APRILIA SR 125 MOTARD RST 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

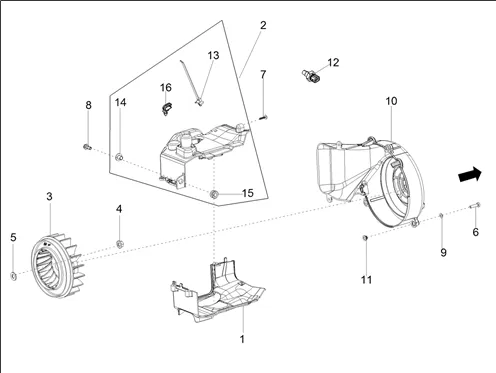

Moteur : 01.12 VENTILATEUR ET CAPOT DE PROTECTION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1157/SR_125_MOTARD_RST_2022_(EMEA)_01.12.png)
1 |
1A011087-COIFFE More informationQuantity required : 1 |
||||||
|
2 |
1A001023-COIFFE COTE INTAKE More informationQuantity required : 1 |
||||||
|
3 |
B017294-VENTILATEUR More informationQuantity required : 1 |
||||||
|
4 |
844719 - ECROU More informationQuantity required : 1 |
||||||
|
5 |
B017080-WASHER PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/7/0/1/img/178701.jpg)
6 |
SCREW BTR HEAD BOMBE (5X21) TORX OEM APRILIA RS 457/SR 125 2022 > 2023/SXR 50 2021 > 2023-1A014986 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/0/7/9/img/164079.JPG)
7 |
SCREW TARAUD 3. 8X16 OEM PIAGGIO COMMON A LA RANGE-B018421 More informationQuantity required : 5 |
||||||
|
8 |
1F000110-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/0/img/63840.jpg)
9 |
WASHER (5, 3X10X0, 5) OEM PIAGGIO COMMON A LA RANGE-006975 More informationQuantity required : 3 |
||||||
|
10 |
B014750-COVER CANALES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/9/4/img/152894.JPG)
11 |
WASHER PLATE (10X22. 2X1. 7) OEM PIAGGIO COMMON A LA RANGE-B015321 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/8/1/2/img/81812.jpg)
12 |
SONDE DE TEMPERATURE OEM PIAGGIO 125 FLY, LIBERTY, VESPA LX, 50 ZIP, PRIMAVERA, SPRINT, MP3I-58273R More informationQuantity required : 1 |
||||||
|
13 |
643114-CLAMP More informationQuantity required : 1 |
||||||
|
14 |
B014063 RUBBER MOUNT More informationQuantity required : 1 |
||||||
|
15 |
B014066 SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/7/img/66307.jpg)
16 |
CLAMP OEM PIAGGIO COMMON A LA RANGE-298729 More informationQuantity required : 1 |
