Vehicle Exploded View - APRILIA SR 125 MOTARD RST 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

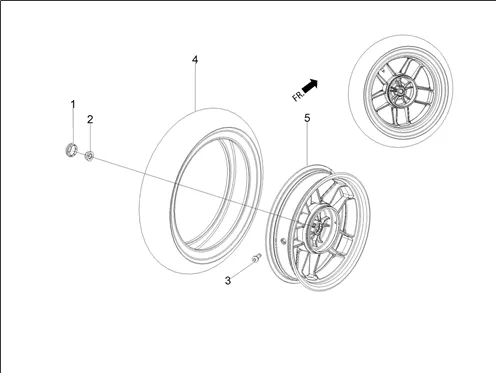

Cadre : 02.20 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1157/SR_125_MOTARD_RST_2022_(EMEA)_02.20.png)
Search
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/9/3/2/img/89932.jpg)
1 |
CAP ESSIEU WHEEL OEM PIAGGIO COMMON A LA RANGE-665657 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/2/4/3/img/164243.jpg)
2 |
NUT DE REAR WHEEL OEM APRILIA 50 SXR 2021 >-1C002806 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/4/img/66094.jpg)
3 |
VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-270991 More informationQuantity required : 1 |
||||||
4 |
1C002932-TYRE 120/70-14 " (VEE RUBBER) More informationQuantity required : 1 |
||||||
|
5 |
1C005823R-WHEEL AR. 14 " X 3. 50 " More informationQuantity required : 1 |
