Vehicle Exploded View - APRILIA SR 125 MOTARD RST 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

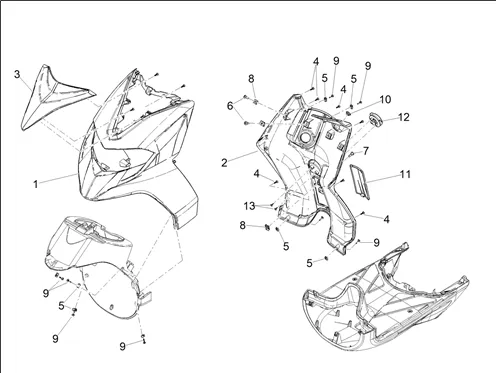

Cadre : 02.03 TABLIER AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1157/SR_125_MOTARD_RST_2022_(EMEA)_02.03.png)
1 |
|
||||||
|
1 |
SP1B008630NL-SR MY'21 FR SHIELD-MT BLACK SPD More informationQuantity required : 1 |
||||||
|
1 |
SP1B008630BR-SR MY'21 SHIELD-WHITE SPD More informationQuantity required : 1 |
||||||
|
1 |
SP1B008630DX-SR MY'21-SHIELD-GLOSSY BLUE SPD More informationQuantity required : 1 |
||||||
|
1 |
SP1B008630HL-SR MY'21-SHIELD-GLOSSY GREY SPD More informationQuantity required : 1 |
||||||
|
1 |
SP1B008630R7-SR MY'21-SHIELD-GLOSSY RED SPD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/0/7/6/5/img/170765.jpg)
2 |
LEG SHIELD INNER OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 >-1B007748 More informationQuantity required : 1 |
||||||
|
3 |
SP1B008706BR-SR MY'21 STEERING COVER-WHITE SPD More informationQuantity required : 1 |
||||||
|
3 |
SP1B008706R7-SR MY'21-STEERING COVER-GLOSSY RED SPD More informationQuantity required : 1 |
||||||
|
3 |
SP1B008706DX-SR MY'21-STEERING COVER-GLOSSY BLUE SP More informationQuantity required : 1 |
||||||
|
3 |
SP1B008706HL-SR MY'21-STEERING COVER-GLOSSY GREY SP More informationQuantity required : 1 |
||||||
|
3 |
SP1B008706NL-SR MY'21 ST COVER MT BLACK SPD More informationQuantity required : 1 |
||||||
|
3 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
4 |
SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793 More informationQuantity required : 9 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
5 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
6 |
SCREW TBC (6X16) OEM PIAGGIO COMMON A LA RANGE-272836 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
7 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
8 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
9 |
SCREW OF FAIRING (3X18) OEM PIAGGIO COMMON A TOUTE LA RANGE-258249 More informationQuantity required : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/7/7/7/img/152777.jpg)
10 |
CAP DE LEG SHIELD OEM PIAGGIO 50 TYPHOON 2018 >-1B005790 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/7/7/6/img/152776.jpg)
11 |
COVER/COVER N- DE FRAME OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 >-1B005199 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/2/2/img/67122.jpg)
12 |
CROCHET DOOR SAC OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-575819 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/8/img/73358.jpg)
13 |
SCREW TORX (4, 2X13) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178603 More informationQuantity required : 2 |
