Vehicle Exploded View - APRILIA SR 125 MOTARD RST 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

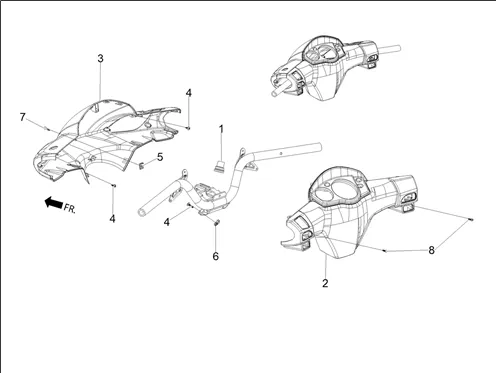

Cadre : 02.13 COUVERTURES GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1157/SR_125_MOTARD_RST_2022_(EMEA)_02.13.png)
1 |
1B003841-COVER More informationQuantity required : 1 |
||||||
|
2 |
1B008636-REAR HANDLEBAR COVER More informationQuantity required : 1 |
||||||
|
3 |
SP1B008706R7-SR MY'21-STEERING COVER-GLOSSY RED SPD More informationQuantity required : 1 |
||||||
|
3 |
|
||||||
|
3 |
SP1B008706BR-SR MY'21 STEERING COVER-WHITE SPD More informationQuantity required : 1 |
||||||
|
3 |
SP1B008706HL-SR MY'21-STEERING COVER-GLOSSY GREY SP More informationQuantity required : 1 |
||||||
|
3 |
SP1B008706NL-SR MY'21 ST COVER MT BLACK SPD More informationQuantity required : 1 |
||||||
|
3 |
SP1B008706DX-SR MY'21-STEERING COVER-GLOSSY BLUE SP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
4 |
SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/5/img/72925.jpg)
5 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017409 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
6 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 1 |
||||||
|
7 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/8/img/66058.jpg)
8 |
SCREW AUTOTARAUDEUSE (4X16) OEM PIAGGIO COMMON A LA RANGE-267115 More informationQuantity required : 1 |
