Vehicle Exploded View - APRILIA SR 125 MOTARD RST 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

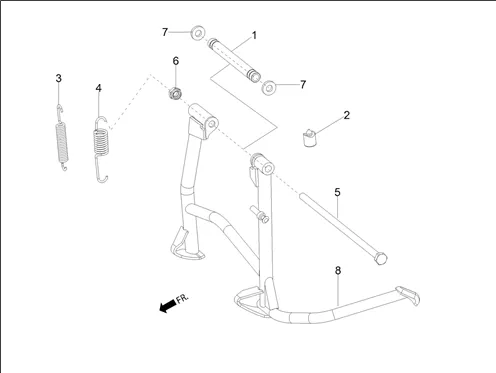

Cadre : 02.02 BÉQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1157/SR_125_MOTARD_RST_2022_(EMEA)_02.02.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/1/8/6/img/164186.jpg)
1 |
SPACER DE STAND OEM PIAGGIO 50 SXR APRILIA 2021 >-668585 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/1/8/7/img/164187.jpg)
2 |
BUFFER RUBBER DE STAND OEM PIAGGIO 50 SXR APRILIA 2021 >-666484 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/2/5/2/img/90252.jpg)
3 |
SPRING DE CENTRE STAND (PETIT) OEM PIAGGIO 400 BEVERLY, MP3 2020 >/50 SXR APRILIA 2021 >-667566 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/2/5/3/img/90253.jpg)
4 |
SPRING DE CENTRE STAND (GROS) OEM PIAGGIO 400 BEVERLY, MP3 2020 >/50 SXR APRILIA 2021 >-667567 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/2/1/0/img/146210.jpg)
5 |
SPINDLE/SCREW OEM MOPED SWINGARM OEM PIAGGIO 50 LIBERTY 2015 >/50 SXR APRILIA 2021 >-597043 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
6 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/7/img/66127.jpg)
7 |
GASKET SHAFT OF STAND OEM PIAGGIO COMMON A LA RANGE-273754 More informationQuantity required : 2 |
||||||
8 |
1C005213-CENTRE STAND WITH PIECES INTERNES More informationQuantity required : 1 |
