Vehicle Exploded View - APRILIA SR 125 MOTARD RST 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

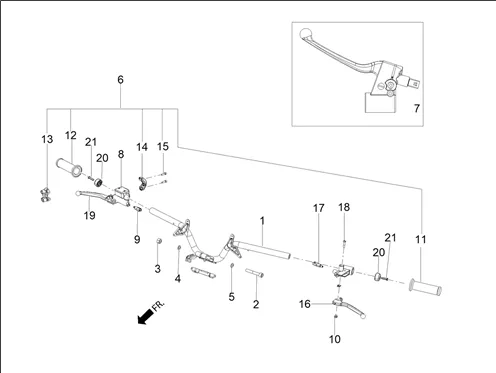

Cadre : 02.15 GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1157/SR_125_MOTARD_RST_2022_(EMEA)_02.15.png)
1 |
1B008816 - HANDLEBAR WITH I.P. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/2/9/4/img/68294.jpg)
2 |
SCREW BTR (10X65) OEM PIAGGIO COMMON A LA RANGE-655554 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/8/img/65378.jpg)
3 |
NUT (M10) OEM PIAGGIO COMMON A LA RANGE-015330 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/0/img/65350.jpg)
4 |
WASHER CRANTEE (10. 3X17X2) OEM PIAGGIO COMMON A LA RANGE-012543 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/9/img/65789.jpg)
5 |
WASHER PLATE (10. 3X22X2. 5) OEM PIAGGIO COMMON A LA RANGE-178790 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/6/4/6/img/195646.jpg)
6 |
THROTTLE GRIP OEM APRILIA 50 SXR 2021 >-1C006375 More informationQuantity required : 1 |
||||||
|
7 |
1C004257-SLEEVE WITH BRAKE LEVER REAR More informationQuantity required : 1 |
||||||
|
8 |
SP1C003780-MAITRE-CYLINDER OF BRAKE HYDRAULIQUE AV More informationQuantity required : 1 |
||||||
|
9 |
1D002507-BUTTON STOP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/1/8/img/65718.jpg)
10 |
SCREW BTR (6X17) WITH BUSH OEM PIAGGIO COMMON A LA RANGE-123394 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/9/img/66099.jpg)
11 |
REVETEMENT DE GRIP LEFT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-271452 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/0/img/66100.jpg)
12 |
REVETEMENT DE GRIP RIGHT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-271453 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/2/6/1/img/109261.jpg)
13 |
HALF CLAMP LOWER DE THROTTLE GRIP OEM PIAGGIO COMMON A LA RANGE-598369 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/3/1/4/img/109314.jpg)
14 |
HALF CLAMP UPPER DE THROTTLE GRIP OEM PIAGGIO COMMON A LA RANGE-666758 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/6/1/img/178661.JPG)
15 |
SCREW BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-1C004839 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/7/1/img/152871.jpg)
16 |
BRAKE LEVER LEFT OEM PIAGGIO 50 TYPHOON 2018/APRILIA 50 SR MOTARD 2018 >-667387 More informationQuantity required : 1 |
||||||
|
17 |
1D002507-BUTTON STOP More informationQuantity required : 1 |
||||||
|
18 |
|
||||||
|
19 |
4A000002-LEVER BRAKE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/9/1/4/img/139914.jpg)
20 |
HANDLEBAR END OEM PIAGGIO 125 MEDLEY-1B002616 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/7/1/5/2/img/177152.jpg)
21 |
SCREW TORX (6X30) OEM PIAGGIO COMMON A LA RANGE-1B006381 More informationQuantity required : 2 |
||||||
|
21 |
SCREW TORX (6X30) OEM PIAGGIO COMMON A LA RANGE-1B006381 More informationQuantity required : 2 |
