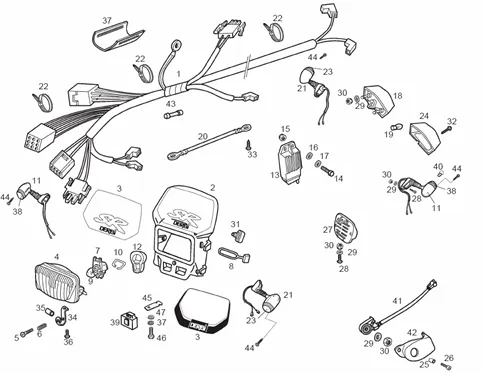

Vehicle Exploded View - DERBI SENDA R 50 SENDA R 2002 RACER

	P2R reference	188307
	Maker reference	00H01013301

00H01013301 - FAISCEAU PRINCIPAL

	P2R reference	190979
	Maker reference	00H01023301

00H01023301 - CTO.INSTAL.ELECT.SDA-R EDITION

	P2R reference	190980
	Maker reference	00H02214371

00H02214371 - PLAQUE PHARE

	P2R reference	190981
	Maker reference	00H02214372

00H02214372 - PLAQUE PHARE

	P2R reference	190982
	Maker reference	00H02214373

00H02214373 - PLAQUE PHARE

	P2R reference	188311
	Maker reference	00H02225371

00H02225371 - SCTO.CARC.FARO AZ.SD-R-RACER

	P2R reference	188312
	Maker reference	00H02225372

00H02225372 - SCTO.CARC.FARO NG.SD-R-RACER

	P2R reference	190983
	Maker reference	00H01514321

00H01514321 - DECAL DE PLAQUE PHARE

	P2R reference	190984
	Maker reference	00H01514322

00H01514322 - DECAL DE PLAQUE PHARE

	P2R reference	190985
	Maker reference	00H01514323

00H01514323 - DECAL DE PLAQUE PHARE

	P2R reference	188316
	Maker reference	00H01522321

00H01522321 - CALCA PORTANUM.AZ SD-RACER

	P2R reference	188317
	Maker reference	00H01522322

00H01522322 - CALCA PORTANUM.NGR SD-RACER

	P2R reference	188318
	Maker reference	00H01004011

00H01004011 - OPTIQUE COMPLETE

	P2R reference	190986
	Maker reference	00H01014011

00H01014011 - CTO.FARO DT.SENDA SR EDITION

	P2R reference	188319
	Maker reference	00G01000101

00G01000101 - R-VIS DE REGLAGE PHARE.M4X30.

	P2R reference	64687
	Maker reference	00H02302501

SPRING REGLAGE DE HEADLAMP OEM PIAGGIO 50 GILERA SMT 2011 > 2017/DERBI SENDA 2010 > 2017-00H02302501

	P2R reference	63641
	Maker reference	000037101105

DOOR-LAMPE DE HEADLAMP OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00003710110

	P2R reference	187861
	Maker reference	00H01800361

00H01800361 - BRIDE FIXATION

	P2R reference	65942
	Maker reference	219528

AMPOULE/LAMPE 12V 35/35W S2 OEM PIAGGIO COMMON A LA RANGE-219528

	P2R reference	63642
	Maker reference	000037101205

SPRING DOOR AMPOULE/LAMPE FRONT OEM DERBI 50 SENDA 2017 </GILERA 50 SMT, RCR 2017 </APRILIA 50 SX, RX 2017 <-00003710120

	P2R reference	63908
	Maker reference	00F01703391

00F01703391 - ENS.CLIGNOTANT ARR. GAUCHE

	P2R reference	187546
	Maker reference	00D05700141

00D05700141 - R-PROT.PORTE-LAMPES PHARE F

	P2R reference	190987
	Maker reference	00H01001841

00H01001841 - REGULAD.TENSION SENDA-R

	P2R reference	188320
	Maker reference	00H01002841

00H01002841 - REGULATEUR

	P2R reference	188197
	Maker reference	00H01515222

00H01515222 - TAPA DEPOSITOS AZ.SD-R-RACER

	P2R reference	65460
	Maker reference	0201055

NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105

	P2R reference	69496
	Maker reference	847226

WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226

	P2R reference	71851
	Maker reference	AP8150284

WASHER EVENTAIL (D5) OEM PIAGGIO COMMON A LA RANGE-AP8150284

	P2R reference	64370
	Maker reference	00H01001321

00H01001321 - FEU ARRIERE

	P2R reference	188321
	Maker reference	00A01020971

00A01020971 - CABLE MASSE FEU ARRIERE

	P2R reference	63907
	Maker reference	00F01703301

00F01703301 - ENS.CLIGNOTANT ARR.DROITE

	P2R reference	63866
	Maker reference	00A00900531

00A00900531 - COLLIER

	P2R reference	188322
	Maker reference	00G01702892

00G01702892-GLACE REAR RIGHT INDICATOR

	P2R reference	188323
	Maker reference	00D01070341

00D01070341-VERRE

	P2R reference	188324
	Maker reference	00H06300281

00H06300281 - DOUILLE DE SERRAGE PROT.INTERR

	P2R reference	63570
	Maker reference	000000046125

00000004612-SCREW A HEAD ALLEN 6M100X12.

	P2R reference	63903
	Maker reference	00F01001311

00F01001311 - ZLAXON COMPLET

	P2R reference	190988
	Maker reference	00H01004311

00H01004311 - CTO.CLAXON.12V.FENIX 95

	P2R reference	63704
	Maker reference	000121616005

SCREW CRUCIFORME (6X16) MOUNTING AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX,-00012161600

	P2R reference	63876
	Maker reference	00D01200171

WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171

	P2R reference	63590
	Maker reference	000000230605

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060

	P2R reference	63911
	Maker reference	00F02201591

00F02201591 - FIX.TUYAU

	P2R reference	63679
	Maker reference	000110338005

00011033800 - VIS

	P2R reference	63685
	Maker reference	000110613005

00011061300-SCREW

	P2R reference	188325
	Maker reference	00H02301511

00H02301511 - FIX. OPTIQUE

	P2R reference	188326
	Maker reference	00H05700531

00H05700531 - R-CHAVETA FIJ.MUELLE REG.FARO

	P2R reference	65408
	Maker reference	0159965

SCREW CRUCIFORME (4X12) OEM PIAGGIO COMMON A LA RANGE-015996

	P2R reference	188327
	Maker reference	00G01702902

00G01702902 - GLACE CLIGNOTANT ARRIERE GAUCH

	P2R reference	64011
	Maker reference	00G01700401

00G01700401-CENTRAL CLIGNOTANTE

	P2R reference	67298
	Maker reference	584332

AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332

	P2R reference	188328
	Maker reference	00G05700601

00G05700601-ENS. INTERRUPTEUR STAND CENT

	P2R reference	188329
	Maker reference	00H06800301

00H06800301 - COUVERCLE CONTACTEUR

	P2R reference	188330
	Maker reference	00F01010911

00F01010911 - FUSIBLE 4 AH.SCO-50.ITAL./89.

	P2R reference	64012
	Maker reference	00G01701091

00G01701091 - BOULON SERRAGE GLACE CLIGNOTAN

	P2R reference
	Maker reference	031059

BOULON S03105900

	P2R reference	64684
	Maker reference	00H02300961

PROTECTOR DE CONNEXIONS ON HARNESS OEM PIAGGIO GILERA 50 SMT, RCR 2011 >/DERBI 50 SENDA 2000 >/APRILIA 50 SX, RX 2011 >-00H02300961
