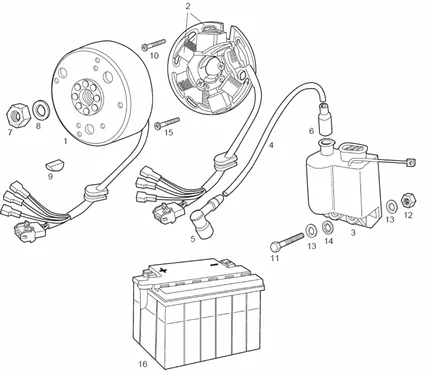

Tables : 20 VOLANT MAGNÉTIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1085/SENDA_R_2002_RACER_20.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/4/3/img/68743.jpg)
1 |
IGNITION (COMPLETE ROTOR + STATOR) OEM DERBI 50 SENDA 2018 </GILERA 50 RCR, SMT 2017 </APRILIA RX, SX 2017 <-82829R More informationQuantity required : 1 |
||||||
1 |
00H03307011 - VOLANT MAGNETIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/8/1/img/64781.jpg)
2 |
IGNITION STATOR "PIAGGIO GENUINE PART" 50 SMT 1998>2003 -00H03300701 More informationQuantity required : 1 |
||||||
|
2 |
00H03303701 - STATOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/8/7/img/64787.jpg)
3 |
BOBINE IGNITION OEM DERBI 50 SENDA 2002 > 2017/GILERA 50 SMT 2006 > 2017/APRILIA 50 RS, RX, SX 2006 > 2017-00H03330171 More informationQuantity required : 1 |
||||||
|
3 |
00H03331171 - BOBINE AUTE TENSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/8/img/65668.jpg)
4 |
CABLE HAUTE TENSION OEM PIAGGIO COMMON A TOUTE LA RANGE-080341 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/8/3/img/64083.jpg)
5 |
00G03301271-MANIFOLD DE SPARK PLUG More informationQuantity required : 1 |
||||||
|
6 |
00F03300731-CAPUCHON More informationQuantity required : 1 |
||||||
|
7 |
00H03300221 - ECROU FIXE VOLANT More informationQuantity required : 1 |
||||||
|
8 |
00F03300241 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/8/img/69488.jpg)
9 |
CLAVETTE DE VOLANT IGNITION ET CLUTCH OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA RS, RX, SX 2006 >, RS4 2011 >-847215 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/0/1/img/69501.jpg)
10 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 -847233- More informationQuantity required : 1 |
||||||
|
11 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/0/img/65460.jpg)
12 |
NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
13 |
WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/1/img/71851.jpg)
14 |
WASHER EVENTAIL (D5) OEM PIAGGIO COMMON A LA RANGE-AP8150284 More informationQuantity required : 1 |
||||||
|
15 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/7/0/img/65970.jpg)
16 |
BATTERY 12V 4AH YB4L-B OEM PIAGGIO COMMON A LA RANGE-234390 More informationQuantity required : 1 |
