Vehicle Exploded View - DERBI SENDA R 50 SENDA R 2002 RACER
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

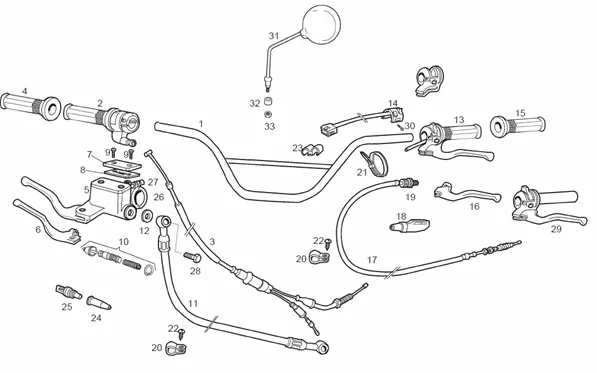

Tables : 7 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1085/SENDA_R_2002_RACER_7.png)
1 |
00D00910017 - SCTO.MANILLAR GRIS SARGA More informationQuantity required : 1 |
||||||
|
2 |
00D02100621 - POIGNEE DE GAZ COMPLETE More informationQuantity required : 1 |
||||||
|
3 |
00H00903171-GAINE ET CABLE DE THROTTLE More informationQuantity required : 1 |
||||||
|
4 |
00F00930091 - CAOUT. DE PIGNEE GAZ More informationQuantity required : 1 |
||||||
|
5 |
BRAKE MASTER CYLINDER FRONT OEM PIAGGIO GILERA 50 SMT, RCR 1998 > 2003-00G02102081 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/0/0/img/63900.jpg)
6 |
FRONT BRAKE LEVER- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1998>2005 -00F00902291- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/4/8/img/64648.jpg)
7 |
FRONT BRAKE MASTER CYLINDER COVER "PIAGGIO GENUINE PART" GILERA 50 SMT-RCR 2006> -00H02100191- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/5/1/img/64651.jpg)
8 |
FRONT MASTER CYLINDER GASKET "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H02100861 More informationQuantity required : 1 |
||||||
|
9 |
|
||||||
|
10 |
00H02101811 - R-ENSEM.KIT REPAR. POMPE SENDA More informationQuantity required : 1 |
||||||
|
11 |
00H00907751 - FLEXIBLE DE FREIN AVANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/0/3/img/70303.jpg)
12 |
GASKET/WASHER HOSE OF BRAKE OEM PIAGGIO 50 DERBI 50 SENDA 2000 >/APRILIA RX, SX, RS, TUONO/GILERA 50 SMT, RCR-867238 More informationQuantity required : 1 |
||||||
|
13 |
00H01000141 - ENS.COTTE-LEVIER/POIGN. More informationQuantity required : 1 |
||||||
|
13 |
00H01008141 - CTO.PUÐO LUZ SD 99 EDITION More informationQuantity required : 1 |
||||||
|
14 |
00D02320171 - INVERSEUR AVEC CABLE More informationQuantity required : 1 |
||||||
|
14 |
00H02301381 - INVERSEUR AVEC CABLE More informationQuantity required : 1 |
||||||
|
15 |
00F00930071 - IMPUGNATURA NEE GAZ More informationQuantity required : 1 |
||||||
|
16 |
AP8218061 - LEVIER EMBRAYAGE NU; More informationQuantity required : 1 |
||||||
|
17 |
00H00902301 - GAINE ET CABLE DIEMBRAYAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/5/3/img/64653.jpg)
18 |
PROTEGE LEVER CLUTCH OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX-00H02101011 More informationQuantity required : 1 |
||||||
|
19 |
00D00900351-CLAMP FIX ELIERIE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/0/5/4/img/70054.jpg)
20 |
GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE 50 A BOX-864454 More informationQuantity required : 1 |
||||||
|
21 |
00A00900531 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/8/7/img/63687.jpg)
22 |
SCREW PARKER (4, 8X13) CRUCIFORME OEM COMMON A LA RANGE-00011141300 More informationQuantity required : 1 |
||||||
|
23 |
00H00900521 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/5/4/img/63654.jpg)
24 |
CAPUCHON DE CONTACTEUR DE STOP OEM DERBI 50 SENDA 2000 > 2017/GILERA 50 SMT, RX/SX-00005010760 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/0/img/63870.jpg)
25 |
INTERRUPTEUR DE STOP OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX 2006, RS 2006 > 2010-00D01000701 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/6/img/63886.jpg)
26 |
CAVALIER/HALF CLAMP DE BRAKE MASTER CYLINDER FRONT OEM DERBI 50 SENDA 2000 > 2010 GILERA 50 SMT, RCR 20006 > 2010-00D02100901 More informationQuantity required : 1 |
||||||
|
27 |
00000004620 - VIS T. CREUSE 6M100X20. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/9/5/8/img/69958.jpg)
28 |
862494 - R-TORNILLO RACORD HIDRAULICO More informationQuantity required : 1 |
||||||
|
29 |
00D02100611 - SUPPORT DE LEVIER ET LEV.GAUCH More informationQuantity required : 1 |
||||||
|
30 |
00000012508 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/9/2/6/img/64926.jpg)
31 |
MIRROR- RIGHT "ROUND SHAPED" "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2003>2009 -00H04608921 More informationQuantity required : 1 |
||||||
|
32 |
00G00800261-SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/8/7/img/63587.jpg)
33 |
NUT (M8) OEM PIAGGIO COMMON A LA RANGE-00000021080 More informationQuantity required : 1 |
