Vehicle Exploded View - DERBI SENDA R 50 SENDA R 2002 RACER
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

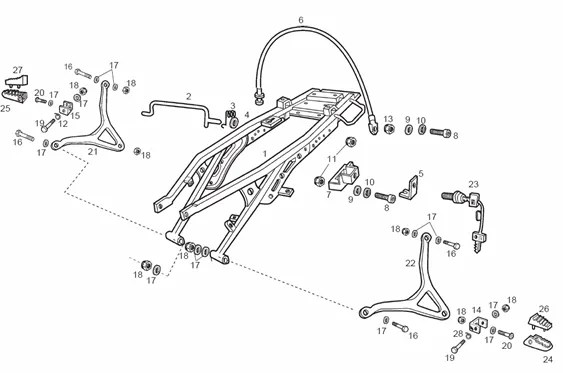

Tables : 2 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1085/SENDA_R_2002_RACER_2.png)
1 |
00H00103343 - ARRIERE DE CADRE More informationQuantity required : 1 |
||||||
|
2 |
00H06100011 - SUPPORT FIX SELLE More informationQuantity required : 1 |
||||||
|
3 |
00H00600181 - RESSORT More informationQuantity required : 1 |
||||||
|
4 |
00H00600991 - RONDELLE More informationQuantity required : 1 |
||||||
|
5 |
00H00601141 - LEVIER FERMETURE SELLE More informationQuantity required : 1 |
||||||
|
6 |
00H05101741 - CABLE DE CASQUE More informationQuantity required : 1 |
||||||
|
7 |
00H00101411 - SUPPORT FERMETURE SELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/0/4/img/63704.jpg)
8 |
SCREW CRUCIFORME (6X16) MOUNTING AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX,-00012161600 More informationQuantity required : 1 |
||||||
|
9 |
BOULON S03105900 |
||||||
|
10 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/0/img/63590.jpg)
11 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060 More informationQuantity required : 1 |
||||||
|
12 |
00D05900171 - RESSORT DR.REPOSE-PIED PASSAG. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/8/6/img/63586.jpg)
13 |
NUT FLANGE (6X1. 00) OEM PIAGGIO COMMON A LA RANGE-00000021060 More informationQuantity required : 1 |
||||||
|
14 |
00D02200426 - PATTE SUP.R.P.GAUCHE More informationQuantity required : 1 |
||||||
|
15 |
00D02200446 - PATTE SUP.R.P.DROITE More informationQuantity required : 1 |
||||||
|
16 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/6/img/63596.jpg)
17 |
WASHER PLATE (8. 4X15. 8X1. 5) OEM PIAGGIO COMMON A LA RANGE-00000031080 More informationQuantity required : 1 |
||||||
|
18 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/6/4/img/63564.jpg)
19 |
00000002840 - TOR.C/EXAG. 8M125X40.8.8/D-931 ZNB. More informationQuantity required : 1 |
||||||
|
20 |
00000004820-BOLT HEAD HEX. 8M125X20 More informationQuantity required : 1 |
||||||
|
21 |
00H00103703 - PLATINE ARR.R.P. DROITE More informationQuantity required : 1 |
||||||
|
22 |
00H00103673 - PLATINE ARR.R.P. GAUCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/7/7/img/64277.jpg)
23 |
ENSEMBLE LOCK SEAT REAR OEM DERBI 50 GPR 2001 > 2013-00H00600681 More informationQuantity required : 1 |
||||||
|
24 |
00D01540455 - REPOSE PIED ARR.GAUCHE More informationQuantity required : 1 |
||||||
|
25 |
00D01520095 - REPOSE PIED ARR.DROITE More informationQuantity required : 1 |
||||||
|
26 |
00D01510501 - PROTECTEUR REPOSE-PIED GAUCHE More informationQuantity required : 1 |
||||||
|
27 |
00D01550101-PROTECTEUR REST-FOOT RIGHT More informationQuantity required : 1 |
||||||
|
28 |
00D05900181 - GAUCHE DR.REPOSE-PIED PASS More informationQuantity required : 1 |
