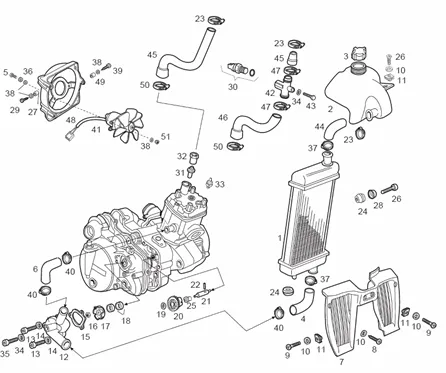

Tables : 23 INSTALLATION REFROIDISSEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1085/SENDA_R_2002_RACER_23.png)
1 |
00H03803012 - RADIATEUR More informationQuantity required : 1 |
||||||
|
2 |
00H03801501 - VASE D'EXPANSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/5/7/img/64857.jpg)
3 |
COOLANT TANK CAP "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2000>2005 -00H03802471 More informationQuantity required : 1 |
||||||
|
4 |
00H03801032 - TUBE POMPE-RADIATEUR More informationQuantity required : 1 |
||||||
|
5 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/4/4/img/64844.jpg)
6 |
HOSE COOLING PUMP-CYLINDER OEM PIAGGIO 50 GILERA SMT, RCR 1998 > 2005/DERBI SENDA 2005 <-00H03801041 More informationQuantity required : 1 |
||||||
|
7 |
00H03803301-GRILLE RADIATOR More informationQuantity required : 1 |
||||||
|
8 |
00012063000 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/6/4/img/63664.jpg)
9 |
SCREW BTR HEAD BOMBEE (6X16) OEM PIAGGIO COMMON A LA RANGE-00008061500 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
10 |
WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
11 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
|
12 |
00H03800134 - COUVERCLE DE POMPE D,EAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/1/4/img/63614.jpg)
13 |
SCREW BTR (5X15) OEM PIAGGIO COMMON A LA RANGE-00002052051 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
14 |
WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/3/2/img/64832.jpg)
15 |
GASKET FOR WATER PUMP COVER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1998>2004 -00H03800141 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/4/5/img/69445.jpg)
16 |
NUT SHAFT OF PUMP A WATER OEM DERBI 50 SENDA/GILERA 50 SMT-847067 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/3/3/img/64833.jpg)
17 |
TURBINE OF PUMP A WATER OEM PIAGGIO GILERA 50 SMT, RCR, GSM, HAK, ZULU 1998 > 2005/DERBI SENDA 2005 <-00H03800151 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/7/3/img/64873.jpg)
18 |
GASKET OF WATER PUMP OEM PIAGGIO 50 GILERA SMT, RCR 1998 > 2003/DERBI SENDA 2005 < (VENDU A L UNITE)-00H03810211 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/5/img/69495.jpg)
19 |
WASHER DE SCREW PLATE D'APPUIS CLUTCH OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2000 >/APRILIA 50 SX, RX, RS-847224 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/3/7/img/64837.jpg)
20 |
SPROCKET OF PUMP A OIL OEM DERBI 50 SENDA 2005 </GILERA 50 SMT, RCR, GSM, HAK, ZULU 2005 <-00H03800381 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/3/4/img/64834.jpg)
21 |
WATER PUMP AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR E2, GSM, H@K, ZULU -00H03800161 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/4/0/img/63740.jpg)
22 |
00053030000 - GOUDILLE More informationQuantity required : 1 |
||||||
|
23 |
00008204500-CLAMP COBRA 21/8 W4 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/7/3/img/63673.jpg)
24 |
RUBBER MOUNT DE RADIATOR OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA RS 2006 > 2011, SX, RX 2006 >-00008915020 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/3/6/img/64836.jpg)
25 |
BUSH FOR WTER PUMP AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR E2, GSM, HAK, ZULU -00H03800231 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/9/6/img/63696.jpg)
26 |
SCREW CRUCIFORME (6X12) OEM PIAGGIO COMMON A LA RANGE-00012061200 More informationQuantity required : 1 |
||||||
|
27 |
00H06800061 - DOUILLE More informationQuantity required : 1 |
||||||
|
28 |
00D01500551 - CUVETTE More informationQuantity required : 1 |
||||||
|
29 |
|
||||||
|
30 |
00H03800741 - THERMOCONTACTEUR More informationQuantity required : 1 |
||||||
|
31 |
00H03800431 - THERMOSTAT More informationQuantity required : 1 |
||||||
|
32 |
00H03810421 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/8/6/img/64686.jpg)
33 |
SONDE TEMPERATURE OEM PIAGGIO GILERA 50 SMT, RCR 1998 > 2004-00H02302441 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/3/0/img/70730.jpg)
33 |
SONDE DE TEMPERATURE WATER OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2003 >/APRILIA SX, RX 2006 >, RS 2006 >, RS4 2011 >-880325 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/3/8/img/64838.jpg)
34 |
WASHER PLATE OEM PIAGGIO COMMON A LA RANGE-00H03800441 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/6/8/img/63568.jpg)
35 |
SCREW TH (5X12) OEM PIAGGIO COMMON A LA RANGE-00000004512 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/0/img/69480.jpg)
36 |
WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181 More informationQuantity required : 1 |
||||||
|
37 |
00H03800091 - COLLIER More informationQuantity required : 1 |
||||||
|
38 |
VIS |
||||||
|
39 |
|
||||||
|
40 |
CLAMP HOSE (22. 8) OEM PIAGGIO COMMON A LA RANGE-00H03801751 More informationQuantity required : 1 |
||||||
|
41 |
00H05700551 - VENTILATEUR More informationQuantity required : 1 |
||||||
|
42 |
00H03800731 - RACCORD More informationQuantity required : 1 |
||||||
|
43 |
|
||||||
|
44 |
00H03801492-TUBO REFR. DPTO. RADIAD. GREY More informationQuantity required : 1 |
||||||
|
45 |
00H03800211 - TUBE More informationQuantity required : 1 |
||||||
|
45 |
00H03801021 - TUBE CULASSE-RADIATEUR More informationQuantity required : 1 |
||||||
|
46 |
00H03800051 - TUBE More informationQuantity required : 1 |
||||||
|
47 |
00H03801091 - BRIDE More informationQuantity required : 1 |
||||||
|
48 |
00H06800031 - CACHE VENTILATEUR More informationQuantity required : 1 |
||||||
|
49 |
00H06800071 - DOVILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/3/9/img/64839.jpg)
50 |
00H03800451 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/8/8/img/63588.jpg)
51 |
NUT AUTOBLOQUANT/NYLSTOP (M4X70) OEM PIAGGIO COMMON A LA RANGE-00000023040 More informationQuantity required : 1 |
