Vehicle Exploded View - DERBI SENDA R 50 SENDA R 2002 RACER
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

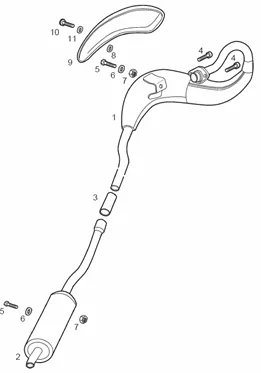

Tables : 21 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1085/SENDA_R_2002_RACER_21.png)
1 |
00H03408081 - ENSEMBLE TUBE D,ECHAPPEMENT More informationQuantity required : 1 |
||||||
|
1 |
00H03411081 - ENSEMBLE TUBE D'ECHAPPEMENT More informationQuantity required : 1 |
||||||
|
1 |
00H03411082 - SCTO.TUBO ESC.SIL.SD-R FR(NGR) More informationQuantity required : 1 |
||||||
|
1 |
00H03411083 - SCTO.TUBO ESC.SIL.SD-R RACER More informationQuantity required : 1 |
||||||
|
1 |
00H03415081 - ENSEMBLE TUBE D'ECHAPPEMENT More informationQuantity required : 1 |
||||||
|
1 |
00H03419081 - SCTO.TUBO ESCAPE-SIL.SD-L/99 F More informationQuantity required : 1 |
||||||
|
2 |
00H03402412 - SILENCIEUX D'ECHAPPEMENT More informationQuantity required : 1 |
||||||
|
2 |
00H03402411 - SOURDINESILENCIEUX More informationQuantity required : 1 |
||||||
|
2 |
00H03424411 - SCTO.SORDINA SD R RACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/6/0/1/img/187601.jpg)
3 |
00H03401321 - RACCORD More informationQuantity required : 1 |
||||||
|
3 |
00H03403321 - RACCORD More informationQuantity required : 1 |
||||||
|
4 |
00000004620 - VIS T. CREUSE 6M100X20. More informationQuantity required : 1 |
||||||
|
5 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/6/img/63596.jpg)
6 |
WASHER PLATE (8. 4X15. 8X1. 5) OEM PIAGGIO COMMON A LA RANGE-00000031080 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/1/5/img/63715.jpg)
7 |
NUT AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-00023108000 More informationQuantity required : 1 |
||||||
|
8 |
VIS |
||||||
|
9 |
00H01802391-PROTECTEUR DE SILENCER More informationQuantity required : 1 |
||||||
|
9 |
00H01805391-PROTECTEUR DE SILENCER More informationQuantity required : 1 |
||||||
|
10 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/3/img/63593.jpg)
11 |
WASHER PLATE D4 OEM PIAGGIO COMMON A LA RANGE-00000031040 More informationQuantity required : 1 |
