Vehicle Exploded View - DERBI SENDA R 50 SENDA R 2002 RACER
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

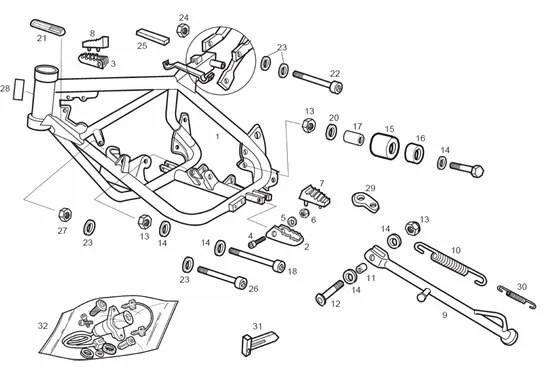

Tables : 1 CHÂSSIS - BÉQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1085/SENDA_R_2002_RACER_1.png)
1 |
00H00108013 - SCTO.CUADRO GRIS ZIRC.SDA-R/98 More informationQuantity required : 1 |
||||||
|
1 |
00H00113013 - SCTO.CUADRO GR.ZIRC.SD-R/98 FR More informationQuantity required : 1 |
||||||
|
1 |
00H00115012 - SCTO.CUADRO ZIRCONIO SD-R/98 More informationQuantity required : 1 |
||||||
|
1 |
00H01944601 - R-CTO.CUADRO C/PL.S-R/98 HOLAN More informationQuantity required : 1 |
||||||
|
1 |
00H01945601 - R-CTO.CUADRO C/PL.S-R/98 ITALI More informationQuantity required : 1 |
||||||
|
2 |
00H01501454A - REPOSE PIED ARR.GAUCHE More informationQuantity required : 1 |
||||||
|
3 |
00H01501094 - REPOSE PIED DROITE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/6/4/img/63564.jpg)
4 |
00000002840 - TOR.C/EXAG. 8M125X40.8.8/D-931 ZNB. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/6/img/63596.jpg)
5 |
WASHER PLATE (8. 4X15. 8X1. 5) OEM PIAGGIO COMMON A LA RANGE-00000031080 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/1/5/img/63715.jpg)
6 |
NUT AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-00023108000 More informationQuantity required : 1 |
||||||
|
7 |
00H01500501 - PROTECTEUR REPOSE-PIED GAUCHE More informationQuantity required : 1 |
||||||
|
8 |
00H01501101 - PROTECTEUR REPOSE-PIED DROIT More informationQuantity required : 1 |
||||||
|
9 |
00H00808011 - BEQUILLE More informationQuantity required : 1 |
||||||
|
9 |
00H00812011 - BEQUILLE More informationQuantity required : 1 |
||||||
|
9 |
00H00816011 - BEQUILLE LATERALE More informationQuantity required : 1 |
||||||
|
10 |
00H00801081 - RESSORT DE BEQUILLE More informationQuantity required : 1 |
||||||
|
10 |
00H00801311 - RESSORT DE BEQUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/1/4/img/64314.jpg)
10 |
SPRING DE SIDE STAND OEM DERBI 50 GPR 1997 > 2001-00H00803081 More informationQuantity required : 1 |
||||||
|
11 |
00H00801261 - DOUILLE ROT.JAMBE BEQUILLE SEN More informationQuantity required : 1 |
||||||
|
12 |
00G00801071 - BOULON SERRAGE JAMBE BEQUILLE More informationQuantity required : 1 |
||||||
|
12 |
00H00802071 - AXE DE BEQUILLE More informationQuantity required : 1 |
||||||
|
12 |
00H00804071 - VIS FIXATION BEQUILLE GPR-50"R More informationQuantity required : 1 |
||||||
|
13 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/3/1/img/63731.jpg)
14 |
WASHER CANNELE D8 OEM PIAGGIO COMMON A LA RANGE-00034000802 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/1/4/img/64614.jpg)
15 |
ROULETTE GUIDE CHAIN OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00H01801771 More informationQuantity required : 1 |
||||||
|
16 |
00H01802781 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/3/1/img/63631.jpg)
17 |
SPACER GUIDE CHAIN OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA/APRILIA SX, RX 2017 <-00002518790 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/0/4/img/64704.jpg)
18 |
SCREW BTR (8X90) OEM PIAGGIO COMMON A LA RANGE-00H02500272 More informationQuantity required : 1 |
||||||
|
19 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/3/9/img/63639.jpg)
20 |
00003306570 - RONDELLE FIX BOITE A OUTILS More informationQuantity required : 1 |
||||||
|
21 |
00H01811101 - PLAQUE CONSTRUCTEUR More informationQuantity required : 1 |
||||||
|
21 |
00H01815101 - PLAQUE CONSTRUCTEUR More informationQuantity required : 1 |
||||||
|
21 |
00H01819101 - PLAQUE CONSTRUCTEUR More informationQuantity required : 1 |
||||||
|
21 |
00H01822101 - PLAQUE CONSTRUCTEUR More informationQuantity required : 1 |
||||||
|
21 |
00H01824101 - PLAQUE CONSTRUCTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/2/5/img/65625.jpg)
22 |
SCREW TH (10X130) DE CENTRE STAND OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-030115 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/7/img/63597.jpg)
23 |
WASHER PLATE (10. 6X20. 7X1. 8) OEM PIAGGIO COMMON A LA RANGE-00000031100 More informationQuantity required : 1 |
||||||
|
24 |
|
||||||
|
25 |
00G06300681 - JOINT GLACE DE CLIGNOTANTS. More informationQuantity required : 1 |
||||||
|
26 |
00H03000271 - VIS More informationQuantity required : 1 |
||||||
|
27 |
|
||||||
|
28 |
00H06300731 - ADHESIFF More informationQuantity required : 1 |
||||||
|
28 |
00H06305731 - ADHESIF More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/1/0/img/64310.jpg)
29 |
PLATE/BRACKET SPRING DE STAND OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA 50 RS, RX, SX 2006 >-00H00800422 More informationQuantity required : 1 |
||||||
|
30 |
00H00802081 - RESSORT DE BEQUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/0/9/img/63909.jpg)
31 |
EBAUCHE DE CLE OEM PIAGGIO GILERA 50 SMT 2006 >/DERBI 50 SENDA 2003 >-00F01810411 More informationQuantity required : 1 |
||||||
|
32 |
00H05901251 - ENSEMBLE SERRURES More informationQuantity required : 1 |
