Vehicle Exploded View - DERBI SENDA R 50 SENDA R 2002 RACER
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

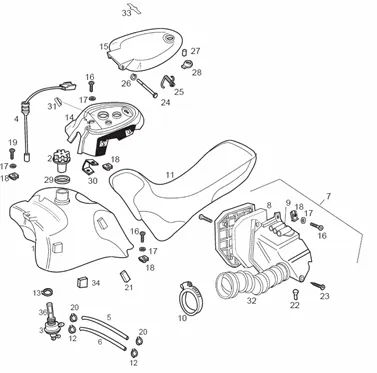

Tables : 5 RÉSERVOIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1085/SENDA_R_2002_RACER_5.png)
1 |
00H00400011 - RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
|
1 |
00H00401011 - RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
|
2 |
00F00400131 - ENS.BOUCHON RESERV.ESSENCE V.B More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/3/0/img/63930.jpg)
3 |
ROBINET FUEL OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >, RS4 2011 >-00G00400181 More informationQuantity required : 1 |
||||||
|
4 |
00H04301181-ENSEMBLE FLOTTEUR FUEL More informationQuantity required : 1 |
||||||
|
5 |
00H00402321 - TUYAU ESSENCE More informationQuantity required : 1 |
||||||
|
6 |
00H06200061 - TUYAU ESSENCE More informationQuantity required : 1 |
||||||
|
7 |
00H01800541 - ENSEMBLE BOITE FILTRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/0/8/8/img/157088.jpg)
8 |
ELEMENT/MOUSSE DE AIR FILTER (PREMIUM) OEM DERBI 50 SENDA 2000 </GILERA 50 SMT 2006 >/APRILIA 50 RX 2006 >, SX 2006 >-B0432990P More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/9/0/img/63890.jpg)
9 |
TUBE ASPIRATION OEM DERBI 50 SENDA 2010 <-00D03210491 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/8/0/img/64080.jpg)
10 |
CLAMP HOSE DE AIR FILTER OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA 50 SX, RX 2006 >-00G03204272 More informationQuantity required : 1 |
||||||
|
10 |
00H03200271 CLAMP More informationQuantity required : 1 |
||||||
|
11 |
00H00605015 - SELLE More informationQuantity required : 1 |
||||||
|
11 |
00H00605016 - SELLE More informationQuantity required : 1 |
||||||
|
11 |
00H00605017 - SELLE More informationQuantity required : 1 |
||||||
|
11 |
00H00614011 - CTO.SILLIN SD-R-RACER AZUL More informationQuantity required : 1 |
||||||
|
11 |
00H00614012 - CTO.SILLIN SD-R-RACER NEGRA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/4/1/img/64241.jpg)
12 |
HOSE CLAMP HOSE (7, 8-8, 3) OEM PIAGGIO COMMON A LA RANGE-00H00400501 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/3/2/img/63932.jpg)
13 |
CLAMP ROBINET FUEL OEM DERBI 50 SENDA 2000 >-00G00400501 More informationQuantity required : 1 |
||||||
|
14 |
00H00403711 - CARCASSE RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
|
14 |
00H01505223 - DESSUS DE RESERVOIR More informationQuantity required : 1 |
||||||
|
14 |
00H01505226 - DESSUS DE RESERVOIR More informationQuantity required : 1 |
||||||
|
14 |
00H01515222 - TAPA DEPOSITOS AZ.SD-R-RACER More informationQuantity required : 1 |
||||||
|
15 |
00H00402682-COVER DE TANK More informationQuantity required : 1 |
||||||
|
15 |
00H00402686 - COUVERCLE DE RESERVOIR More informationQuantity required : 1 |
||||||
|
15 |
00H00413681 - SCTO.TAPA SUP.DEP.AZ.SD-R-RAC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/0/4/img/63704.jpg)
16 |
SCREW CRUCIFORME (6X16) MOUNTING AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX,-00012161600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
17 |
WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
18 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
|
19 |
00012062500-SCREW CRUXIFORME 6M100X25 More informationQuantity required : 1 |
||||||
|
20 |
00D03700131 - CRAMPON ELASTIQUE TUBE ESSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/7/2/8/img/41728.jpg)
21 |
GASKET EPONGE ADHESIVE 15X8 OEM PIAGGIO COMMON A LA RANGE-890512 More informationQuantity required : 1 |
||||||
|
22 |
|
||||||
|
23 |
|
||||||
|
24 |
00H06301751 - AXE More informationQuantity required : 1 |
||||||
|
25 |
00H06301761 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/3/6/img/63736.jpg)
26 |
CLIPS SHAFT OF HATCH A FUEL OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2000 >/APRILIA 50 SX, RX-00047030400 More informationQuantity required : 1 |
||||||
|
27 |
|
||||||
|
28 |
00G00601141-LEVER LATCH SEAT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/9/7/img/63897.jpg)
29 |
WASHER CAP DE TANK OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2000 >/APRILIA 50 SX, RX-00F00400771 More informationQuantity required : 1 |
||||||
|
30 |
00H01502051-LANGUETTE MOUNTING More informationQuantity required : 1 |
||||||
|
31 |
00G04400481 - ADHESIF More informationQuantity required : 1 |
||||||
|
32 |
00H03202261 - TUYAU D'ADMISSION More informationQuantity required : 1 |
||||||
|
32 |
00H03203261 - TUYAU D,ADMISIOM More informationQuantity required : 1 |
||||||
|
33 |
00G01505731 - ADHESIF More informationQuantity required : 1 |
||||||
|
34 |
AP8117041-EPONGE ADHESIVE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/8/7/img/63987.jpg)
35 |
SCREW PARKER (5X38) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-00G01500701 More informationQuantity required : 1 |
||||||
|
36 |
00H00400371 - TUYAU RESERVOIR ESSENCE A ROBI More informationQuantity required : 1 |
