Vehicle Exploded View - APRILIA SCARABEO 400 Light 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

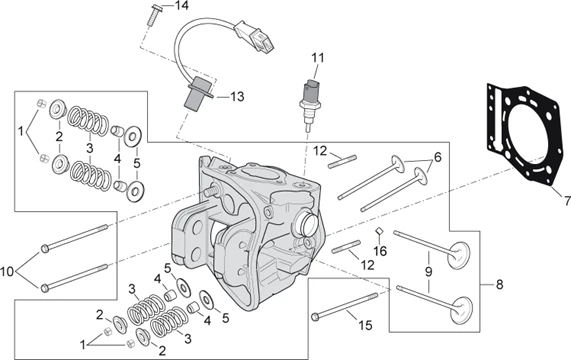

Moteur : 29.37 CULASSE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/605/Scarabeo_400_Light_2006-2008_29.37.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/5/2/img/66152.jpg)
1 |
HALF-LUNE/CLAVETTE DE VALVE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-285846 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/5/2/img/68752.jpg)
2 |
CUP UPPER VALVE OEM PIAGGIO 500-530 MP3-828396 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/8/3/img/68583.jpg)
3 |
SPRING DE VALVE OEM PIAGGIO ENGINE 400-500 MAXI SCOOTER-826103 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/9/3/img/66493.jpg)
4 |
GASKET/BUSH OF VALVE OEM PIAGGIO COMMON A LA RANGE-436438 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/9/2/img/68592.jpg)
5 |
WASHER DE VALVE INFERIEURE OEM PIAGGIO COMMON A LA RANGE-826256 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/4/6/img/68746.jpg)
6 |
VALVE EXHAUST MAXI SCOOTER 400-500 CC OEM PIAGGIO-828321 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/8/5/img/68885.jpg)
7 |
CYLINDER HEAD GASKET OEM PIAGGIO 500 X9, BEVERLY/GILERA 500 NEXUS/APRILIA 400-500 SCARABEO, ATLANTIC-830008 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/3/7/img/69337.jpg)
7 |
CYLINDER HEAD GASKET OEM PIAGGIO 400 BEVERLY, X8, X-EVO, MP3/APRILIA 400 ATLANTIC-844957 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/1/9/img/69519.jpg)
7 |
CYLINDER HEAD GASKET OEM PIAGGIO 500 MP3 2007 >, BEVERLY 2007 > 2012, X10 2012 >/GILERA 500 FUOCO 2007 >/APRILIA 500 SCARABEO 2006 > 2008-847406 More informationQuantity required : 1 |
||||||
8 |
82987R1 - CULASSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/7/5/img/68875.jpg)
8 |
CYLINDER HEAD MAXI SCOOTER OEM PIAGGIO 500 MP3 2007 > 2013, X10 2012 > 2013, BEVERLY 2007 > 2012/GILERA 500 FUOCO 2007 > 2014/APRILIA 400-500 SCARABEO 2006 > (VENDU WITHOUT BASCULEURS NI CAMSHAFT)-82988R1 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/4/7/img/68747.jpg)
9 |
VALVE INTAKE OEM PIAGGIO COMMON A L'ENSEMBLE DE LA RANGE MAXI SCOOTER 400-500-828322 More informationQuantity required : 2 |
||||||
|
10 |
825692-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/8/0/img/67880.jpg)
11 |
SONDE TEMPERATURE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER/GILERA 50 SMT, RCR 2018 >/DERBI SENDA 2018 >-1A021287R More informationQuantity required : 1 |
||||||
|
11 |
828646-SENSOR TEMPERATURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/0/2/img/70702.jpg)
12 |
STUD (6X27. 5) DE CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500-878991 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/1/7/img/67817.jpg)
13 |
SENSOR IGNITION/PHASE TOURS OEM PIAGGIO 400 X-EVO, BEVERLY, 500 X9/MOTO-GUZZI 1400 CALIFORNIA, 750 V7, 850 V9/APRILIA 1000-1100 RSV-4, TUONO V4, 850 SRV, 400-500 ATLANTIC/GILERA 800 GP-6389915 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
14 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/2/img/72722.jpg)
15 |
SCREW TH FLANGE (6X90) OEM PIAGGIO COMMON A LA RANGE-B016776 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/5/2/img/68552.jpg)
16 |
STUD CALIBRE 11. 8X10 OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI ET LES MAXI SCOOTER 400-500 CC-825597 More informationQuantity required : 1 |
