Vehicle Exploded View - APRILIA SCARABEO 400 Light 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

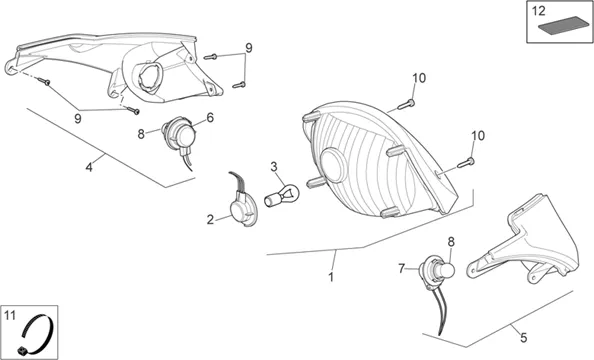

Chassis : 28.28 FEUX ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/605/Scarabeo_400_Light_2006-2008_28.28.PNG)
1 |
AP8127715-FANALE POSTERIORE CROMATO More informationQuantity required : 1 |
||||||
|
2 |
AP8127876 - CABLE PROIECTEUR ARR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/7/img/65727.jpg)
3 |
AMPOULE/LAMPE 12V 21/5W BAY15D/P21/5 OEM PIAGGIO COMMON A LA RANGE-129953 More informationQuantity required : 1 |
||||||
|
4 |
AP8127712 - INDICATORE DIREZIONE POST.DX More informationQuantity required : 1 |
||||||
|
5 |
AP8127713 - INDICATORE DIREZIONE POST.SX More informationQuantity required : 1 |
||||||
|
6 |
AP8127874-DOOR-AMPOULE RIGHT More informationQuantity required : 1 |
||||||
|
7 |
AP8127875 - PORTE-AMPOULE More informationQuantity required : 1 |
||||||
|
8 |
AMPOULE/LAMPE 12V 10W RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-AP8127489 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
9 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/7/img/65407.jpg)
10 |
SCREW PARKER (3. 5X19) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015994 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/5/img/71395.jpg)
11 |
HOSE CLAMP NYLON TYPE RILSAN 2, 5X99MM OEM PIAGGIO COMMON A LA RANGE-AP8120422 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/2/1/4/img/46214.jpg)
12 |
AP8117033-ADHESIVE SPONGE More informationQuantity required : 4 |
